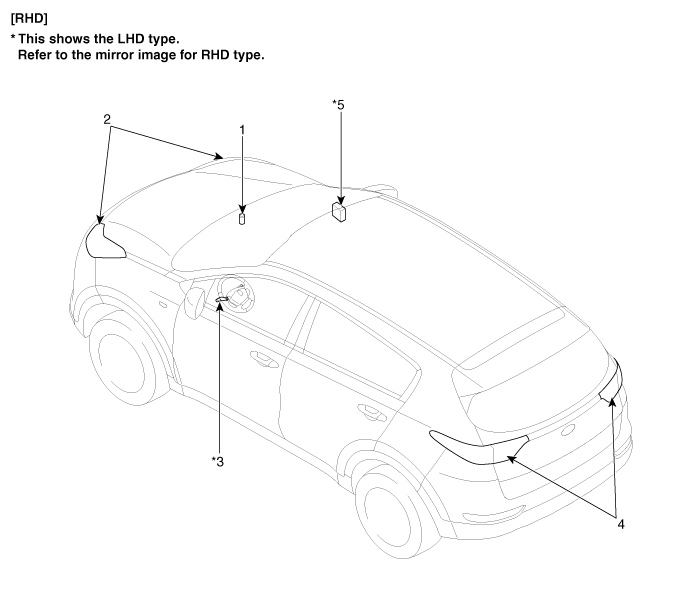

Component Location

1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Tail lamps
5. BCM (Body Control Module)

Specifications
Specifications Items Specifications Rated voltage 5V Load Max. 1mA (Relay load) I ...

Schematic diagrams
Circuit Diagram ...
