Kia Sportage: Rear Seat Belt / Rear Seat Belt Buckle Repair procedures

Kia Sportage QL (2015-2020) Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Buckle Repair procedures

Replacement

When installing the belt, be careful not to damage the retractor.
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Remove the rear seat belt buckle (A) after loosening the mounting bolt.
Tightening torque :
39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)

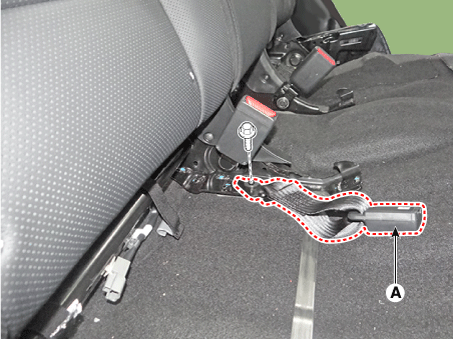

[LH]

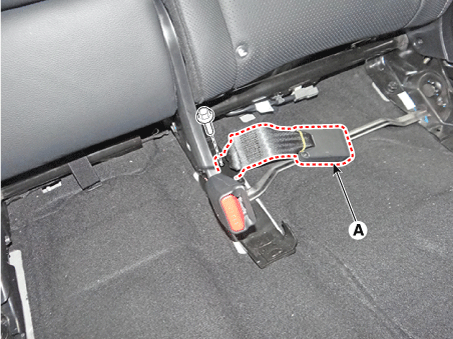

[RH]

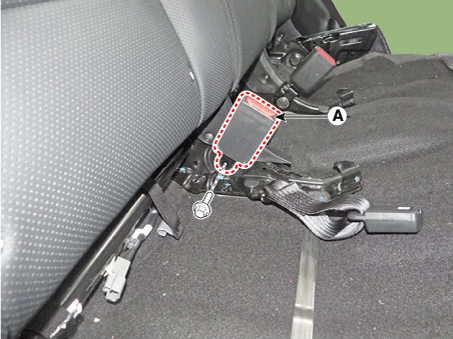

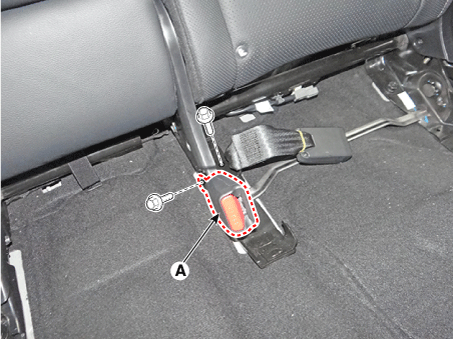

[Center]

3.
Install in the reverse order of removal.
