Kia Sportage: Rear Door / Rear Door Inside Handle Repair procedures

Kia Sportage QL (2015-2020) Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Inside Handle Repair procedures

Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

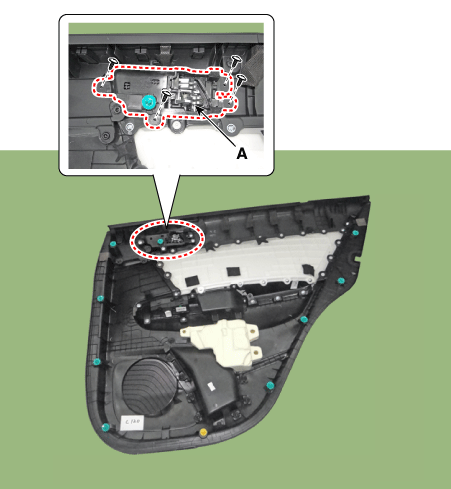

Remove the rear door inside handle (A) after loosening the mounting screws.

3.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.
Replace any damaged clips.
