Replacement

When installing the belt, be careful not to damage the retractor.
1.
Remove the roof trim.
(Refer to Roof Trim - "Roof Trim Assembly")
2.
Push the lock pin and disconnect the rear seat belt lower anchor (A).

3.

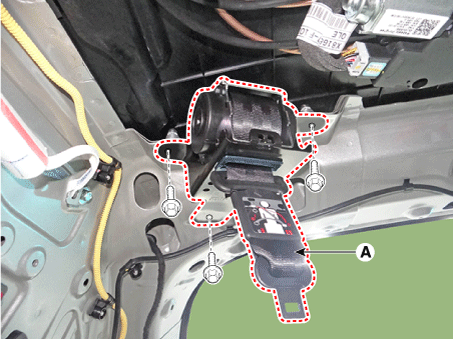

Remove the rear center seat belt (A) after loosening the retractor mounting bolt.

4.
Install in the reverse order of removal.

Make sure the connector is plugged in properly.
Replace any damaged clips (or pin-type retainers).
