Kia Sportage: Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Repair procedures

Kia Sportage QL (2015-2024) Service Manual / Engine Control / Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Repair procedures

Inspection
1.
Connect the KDS/GDS on the Data Link Connector (DLC).
2.
Measure the output voltage of the MAPS at idle and IG ON.
Pressure
[kPa (kgf/cm², psi)]
Output Voltage (V) [Vref=5V]
20.0 (0.20, 2.9)
0.79
46.7 (0.47, 6.77)
1.84
101.3 (1.03, 14.7)
4.0

Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2.

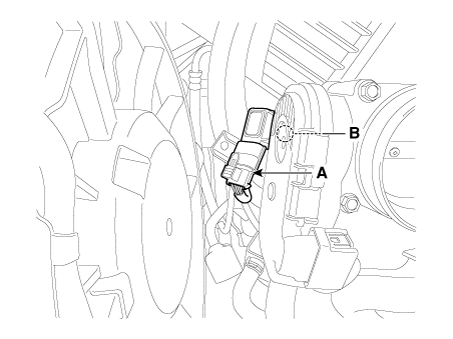

Disconnect the manifold absolute pressure sensor connector (A).
3.
Remove the installation bolt (B), and then remove the sensor from the intake manifold.

Installation

Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
Insert the sensor in the installation hole and be careful not to damage.
1.
Install in the reverse order of removal.
Manifold absolute pressure sensor mounting bolt:
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)
Manifold Absolute Pressure Sensor (MAPS) Schematic diagrams
Circuit Diagram Harness Connector ...

Intake Air Temperature Sensor (IATS) Specifications
Specification Temperature Resistance (kΩ) °C °F -40 -40 40.93 - 48.35 ...
