Kia Sportage: Engine Control System / Rail Pressure Sensor (RPS) Schematic diagrams

Kia Sportage QL (2015-2022) Service Manual / Engine Control / Fuel System / Engine Control System / Rail Pressure Sensor (RPS) Schematic diagrams

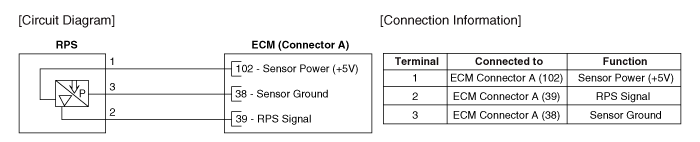

Circuit Diagram

Terminal Information

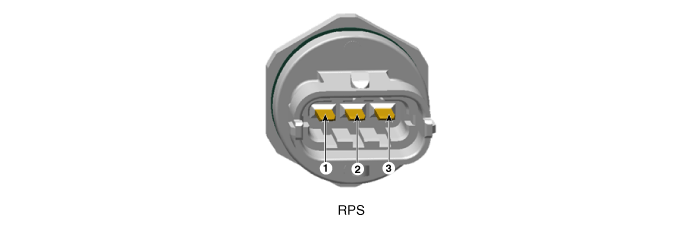

Terminal Illustration

Terminal Function
No.
Function
Connected to
1
Rail pressure sensor power (+5V)
ECM Connector A (102)
2
Rail pressure sensor signal input
ECM Connector A (39)
3
Rail pressure sensor ground (-)
ECM Connector A (38)

Rail Pressure Sensor (RPS) Description and operation
Description Rail Pressure Sensor (RPS) is installed on the delivery pipe and measures the instantaneous fuel pressure in the delivery pipe. The sensing element (Semiconductor ele ...

Rail Pressure Sensor (RPS) Repair procedures
Inspection 1. Connect the KDS/GDS on the Data Link Connector (DLC). 2. Measure the output voltage and fuel pressure of the RPS at idle a ...
