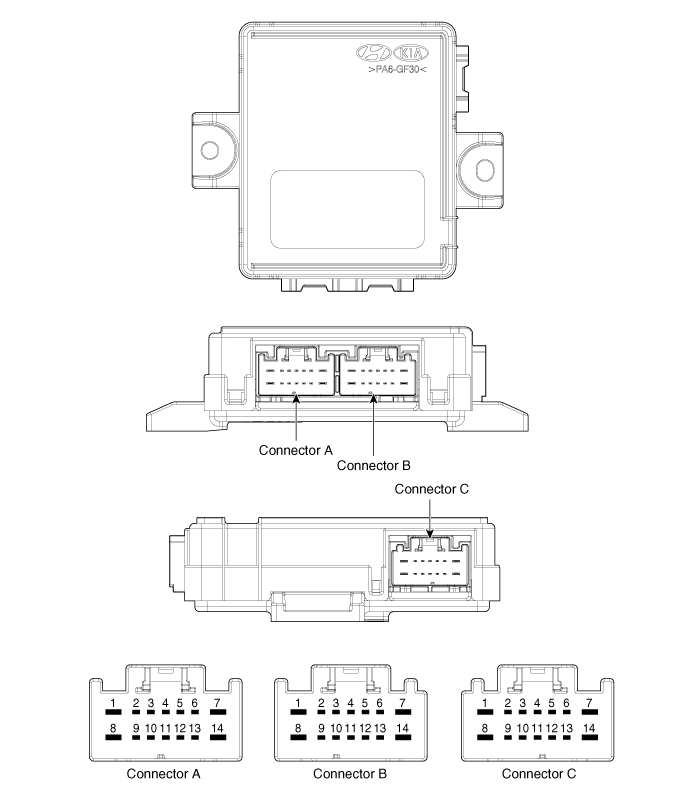

| Components |
Connector Pin Information
|
No. |
Connector A |
Connector B |
Connector C |
|
1 |
Power supply |
Cinching motor (+) |
Spindle motor right_CCW (+) |
|
2 |
Tailgate inner switch illumination |
Full open switch |
Hall sensor right_power |
|
3 |
- |
Full lock switch |
Spindle shield left_GND |
|
4 |
Body CAN (High) |
Half lock switch |
Hall sensor right_GND |
|
5 |
Body CAN (Low) |
PTG home position switch (GND) |
Spindle shield right_GND |
|
6 |
Buzzer |
PTG latch switch (GND) |
Hall sensor left_power |
|
7 |
- |
System (GND) |
Spindle motor left_CW (-) |
|
8 |
Motor power |
Cinching motor (-) |
Spindle motor right_CW (-) |
|
9 |
- |
PTG open/close switch |
Hall sensor right 1 |
|
10 |
N' Gear position |
PTG inner switch |
Hall sensor right 2 |
|
11 |
- |
Home position switch |
Hall sensor left_GND |
|
12 |
Power anti-pinch sensor (Left) |
Power anti-pinch sensor (Left) |
Hall sensor left 1 |
|
13 |
Power anti-pinch sensor (Right) |
Power anti-pinch sensor (Right) |
Hall sensor left 2 |
|
14 |
- |
Power (GND) |
Spindle motor left_CCW (+) |
Troubleshooting
Failure Inspection
Diagnosis With KDS/GDS
1.
In the body electrical system, failure can be quickly diagnosed by using
the vehicle diagnostic system (KDS/GDS). ...
Power Tailgate Module Schematic diagrams
Circuit Diagram
...
