Component Location

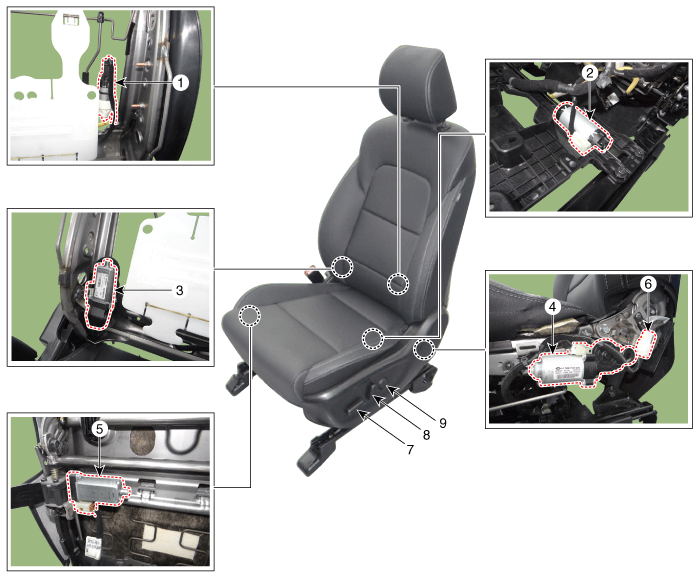

1. Lumber support motor (Horizontal)
2. Slide motor
3. Reclining motor
4. Rear height motor
5. Front height motor
6. Reclining limit switch
7. Seat cushion switch
8. Seat back switch
9. Lumber support switch

Seat Electrical
...

Power Seat Motor Description and operation
Description Power seat motor is driven by a motor in the following. 1. Slide motor 2. Front tilt motor 3. ...
