Removal and Installation

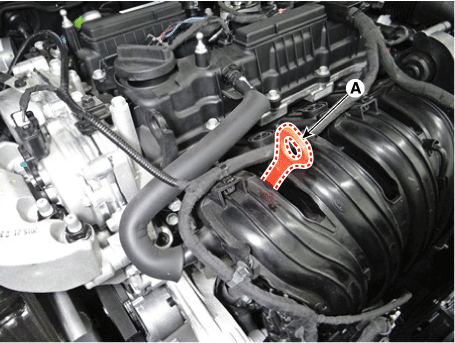

1.	Remove the oil level gauge (A).

2.	Remove the intake manifold. (Refer to Intake and Exhaust System - "Intake Manifold")

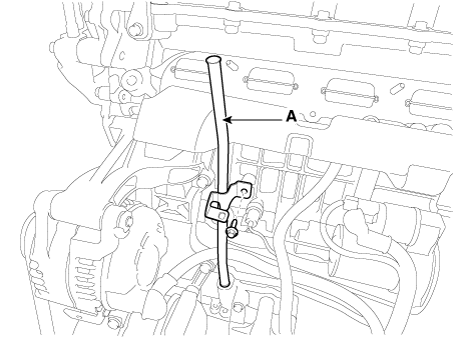

Remove the oil level pipe (A).

Tightening torque :

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

4.	Install in the reverse order of removal.

Oil Pressure Switch Repair procedures
