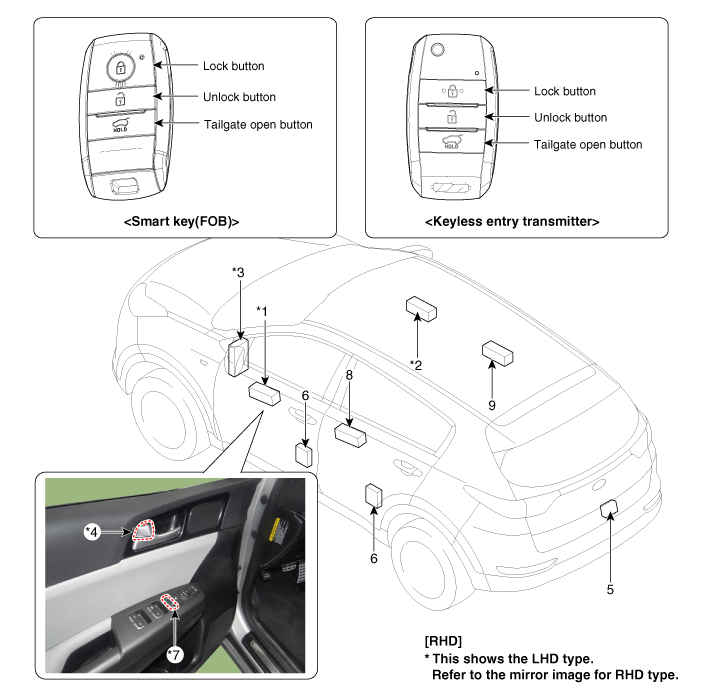

Component Location

1. Driver power window switch
2. Assist power window switch
3. Smart junction block (SJB)
4. Door lock knob
5. Tailgate actuator
6. Door latch module
7. Door lock/unlock switch
8. Rear left power window switch
9. Rear right power window switch

Power Door Locks
...

Power Door Lock Module Components and components location
Components 1. Door lock/unlock knob cable 2. Door inside handle cable 3. Door latch assembly ...
