Kia Sportage: Light bulbs / Glove box lamp bulb replacement

Kia Sportage QL (2015-2025) Owners Manual / Maintenance / Light bulbs / Glove box lamp bulb replacement

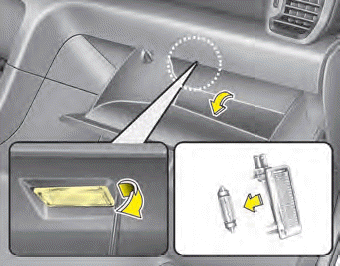

1. Using a flat-blade screwdriver, gently pry the lamp assembly from interior.

2. Remove the bulb by pulling it straight out.

3. Install a new bulb in the socket.

4. Install the lamp assembly to interior.

✽ NOTICE

Be careful not to dirty or damage the lens, lens tab, and plastic housings.

Personal lamp bulb replacement

If the personal lamp (LED) does not operate, we recommend that you have your vehicle checked by an authorized Kia dealer. ...

Tailgate room lamp bulb replacement

1. Using a flat-blade screwdriver, gently pry the lens cover from lamp housing. 2. Remove the bulb by pulling it straight out. 3. Install a new bulb in the socket. 4. Align the lens cover tabs wi ...
