Kia Sportage: Panorama Sunroof / Panorama Sunroof Switch Repair procedures

Kia Sportage QL (2015-2026) Service Manual / Body Electrical System / Panorama Sunroof / Panorama Sunroof Switch Repair procedures

Inspection

1.	Disconnect the negative (-) battery terminal.

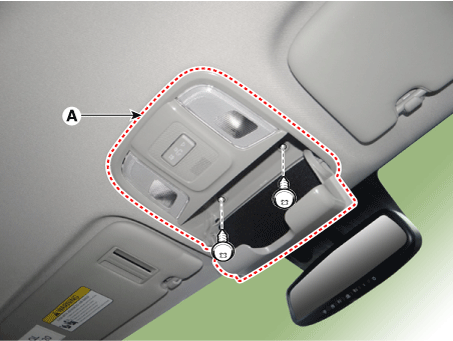

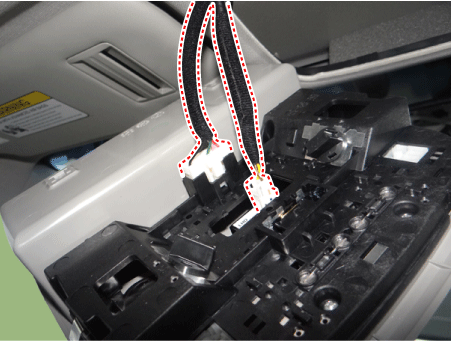

2.	Open the sunglass case cover from the overhead console and remove the 2 screws holding the overhead console. Disconnect the switch connector and Map lamp connector, and then remove the overhead console lamp (A).

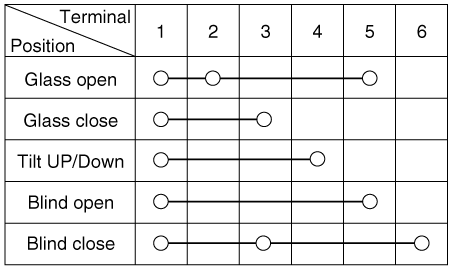

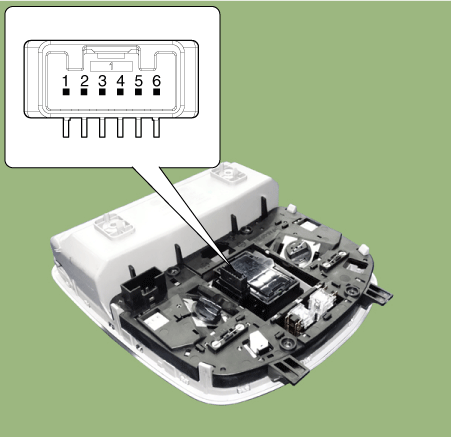

3.	Check for continuity between the terminals. If the continuity is not shown as specified, replace the panoramaroof switch.

Panorama Sunroof Switch Components and components location

Components ...

Panorama Sunroof Motor Repair procedures

Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the roof trim assembly. (Refer to Body - "Roof Trim ...
