Kia Sportage QL (2015-2025) Service Manual / Body Electrical System / Panorama Sunroof / Panorama Sunroof Switch Components and components location

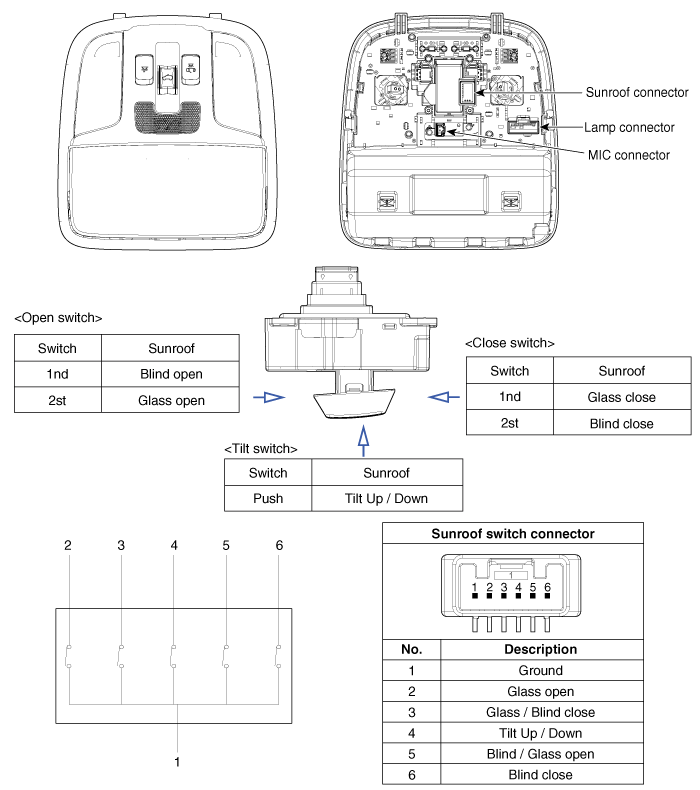

Components

Schematic diagrams

Circuit Diagram No Sunroof wiring connector (Vehicle side) Sunroof wiring connector (Motor) Panorama glass motor ...

Panorama Sunroof Switch Repair procedures

Inspection 1. Disconnect the negative (-) battery terminal. 2. Open the sunglass case cover from the overhead console and remove the ...
