Kia Sportage: Coupling Assembly / Oil hydraulic Motor(Actuator) Schematic diagrams

Kia Sportage QL (2015-2025) Service Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Oil hydraulic Motor(Actuator) Schematic diagrams

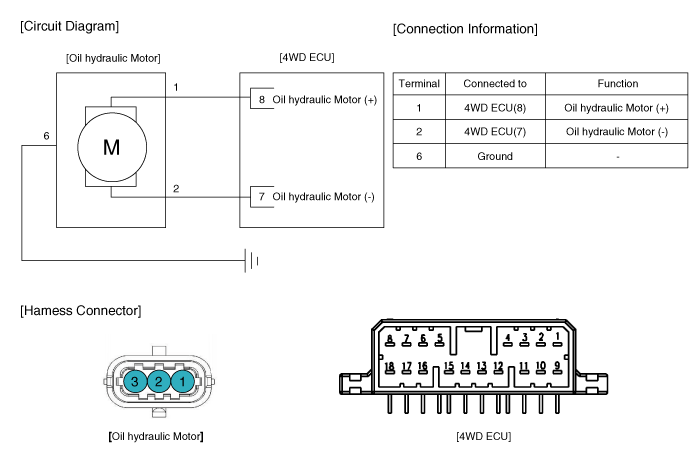

Circuit Diagram

Oil hydraulic Motor(Actuator) Schematic diagrams
Circuit Diagram ...

Pressure Sensor Description and operation
Description The 4WD ECU makes a Motor Pump(Actuator) turn round for generating an oil pressure. And then it presses a multiple disk clutch and transfers the generated torque into ...
