Kia Sportage: Manual climate control system / Air Conditioning refrigerant label

Kia Sportage QL (2015-2020) Owners Manual / Features of your vehicle / Manual climate control system / Air Conditioning refrigerant label

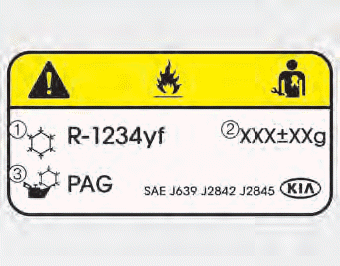

■ Example

WARNING - Vehicles equipped with R-1234yf

Because the refrigerant is mildly inflammable and at very high pressure, the air conditioning system should only be serviced by trained and certified technicians.

It is important that the correct type and amount of oil and refrigerant is used.

Otherwise, it may cause damage to the vehicle and personal injury.

Each symbol and specification on the air conditioning refrigerant label is represented below ;

1. Classification of refrigerant

2. Amount of refrigerant

3. Classification of Compressor lubricant

You can find out which air conditioning refrigerant is applied to your vehicle on the label inside of the engine room.
