Kia Sportage: Coupling Assembly / Oil hydraulic Motor(Actuator) Schematic diagrams

Kia Sportage QL (2015-2023) Service Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Oil hydraulic Motor(Actuator) Schematic diagrams

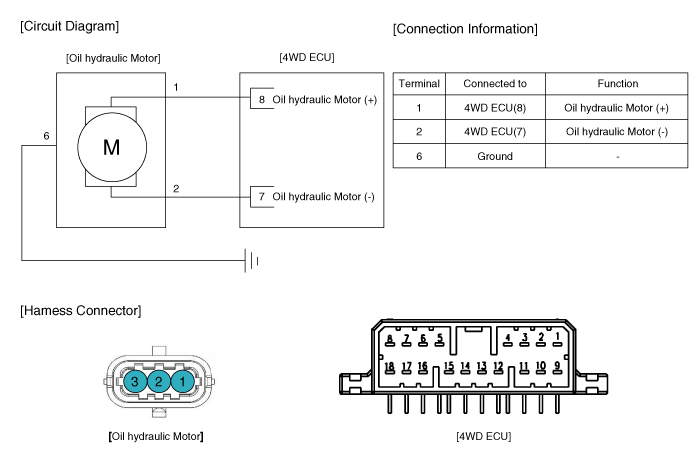

Circuit Diagram

Oil hydraulic Motor(Actuator) Description and operation
Description The 4WD ECM controls the Pump Motor Pump (Actuator) to generating an oil pressure. The pressure engages a multiple disk clutch to transfer torque to the rear wheels. ...

Oil hydraulic Motor(Actuator) Schematic diagrams
Circuit Diagram ...
