Kia Sportage: Coupling Assembly / Oil hydraulic Motor(Actuator) Description and operation

Kia Sportage QL (2015-2025) Service Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Oil hydraulic Motor(Actuator) Description and operation

Description

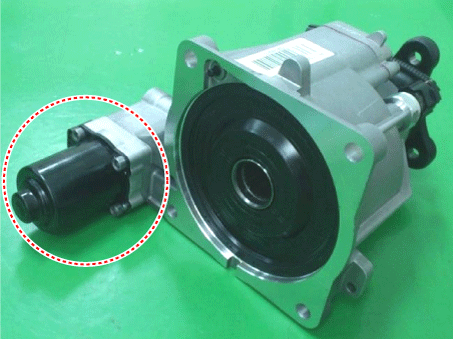

The 4WD ECM controls the Pump Motor Pump (Actuator) to generating an oil pressure.
The pressure engages a multiple disk clutch to transfer torque to the rear wheels. The torque to the rear wheels varies according to the pressure on the clutch.

Direct Electro Hydraulic Actuator Coupling Repair procedures
Inspection    All units are filled up with coupling fluid (ultra-low viscosity ATF) prior to shipping. Inspect ...

Oil hydraulic Motor(Actuator) Schematic diagrams
Circuit Diagram ...
