Replacement
1.

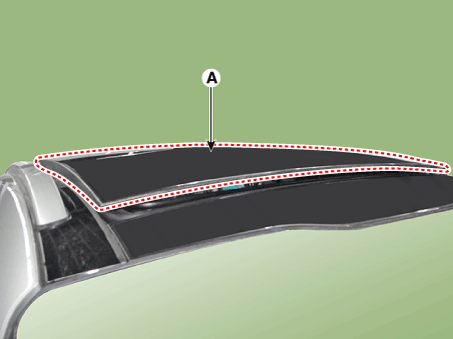

Tilt the movable glass (A) using the panorama switch.

2.

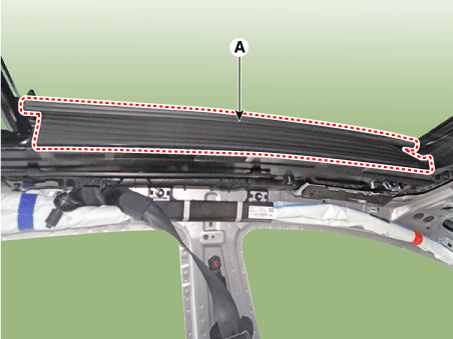

Remove both sides of the decoration cover (A).

3.
Completely close the movable glass using the panorama sunroof switch.
4.

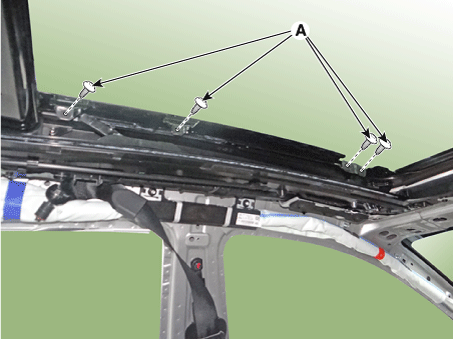

Loosen the mounting screws (A) on both sides.

Be careful not to damage the screws.

5.
Carefully lift up the movable glass (A) and then remove it.

6.
Install in the reverse order of removal.

Align the glass with the body frame as necessary after replacing the movable glass.
Repair procedures
Adjustment Inspect Glass Alignment 1. Inspect the alignment of the movable glass (C) between the front (A) and rear (B) glass and adjust it if needed. ...

Front Glass Repair procedures
Removal    • To remove the front glass, use the tools shown in the following figu ...
