Kia Sportage: Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Schematic diagrams

Kia Sportage QL (2015-2024) Service Manual / Engine Control / Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Schematic diagrams

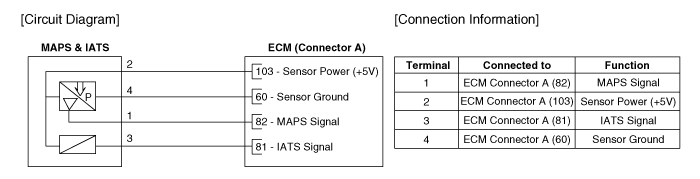

Circuit Diagram

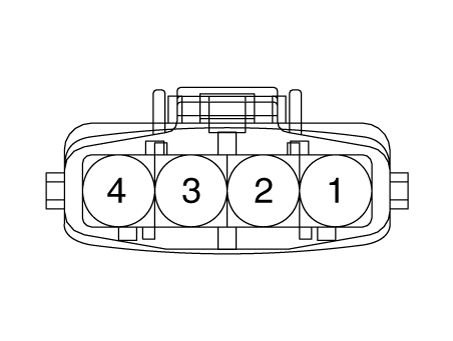

Harness Connector

Manifold Absolute Pressure Sensor (MAPS) Description and operation
Description Manifold Absolute Pressure Sensor (MAPS) is a speed-density type sensor and is installed on the surge tank. It senses absolute pressure of the surge tank and transfer ...

Manifold Absolute Pressure Sensor (MAPS) Repair procedures
Inspection 1. Connect the KDS/GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the MAPS at idle and IG ON. ...
