Kia Sportage: Scheduled maintenance service / Maintenance Under Severe Usage Conditions - Turbo Models
The following items must be serviced more frequently on cars normally used under

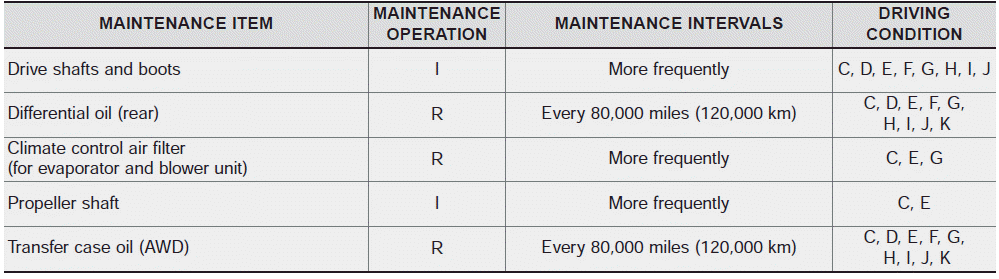

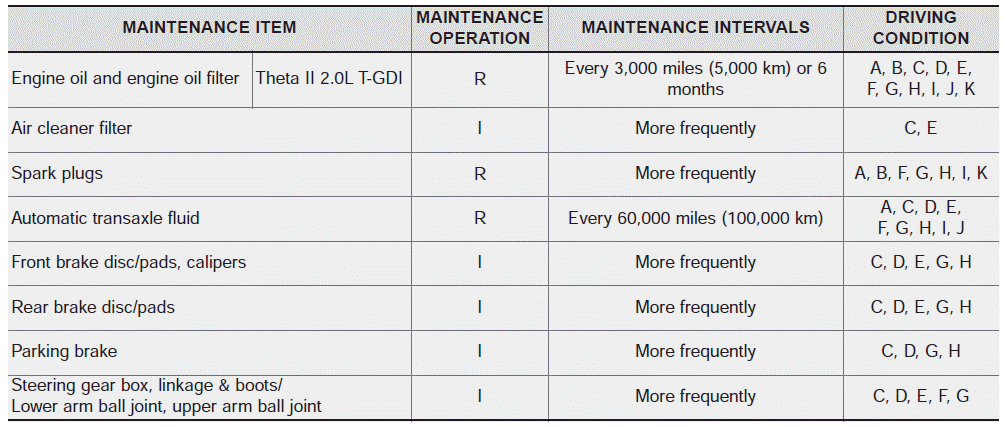

severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace if necessary
.png)
.png)
The following maintenance services must be performed to ensure good emission
control and performance. Keep receipts for all vehicle emission services to protect
your warranty. Where both mileage a ...
A- Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature
or less than 10 miles (16 km) in freezing temperature
B- Extensive engine idling or low speed driving for long ...
