Kia Sportage: Light bulbs / License plate lamp bulb replacement

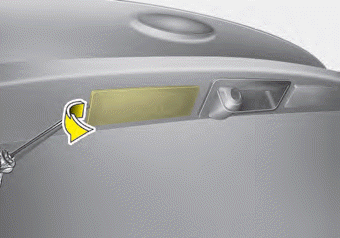

1. Using a flat-blade screwdriver, gently pry the lens cover from lamp housing.

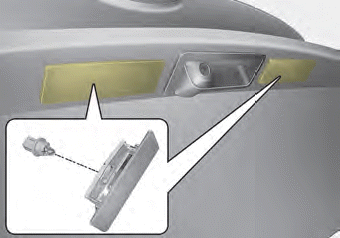

2. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with the slots on the assembly.
3. Remove the bulb from bulb-socket by pulling it out.
4. Insert a new bulb by inserting it into the bulb-socket.
5. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly. Push the socket into the assembly and turn the socket
clockwise.
6. Align the lens cover tabs with the lamp housing notches and snap the lens
into place.
