Description
The components of the hydraulic system
Automatic Transaxle Fluid (ATF)
Oil pump
Oil filter
Valve body
Operation

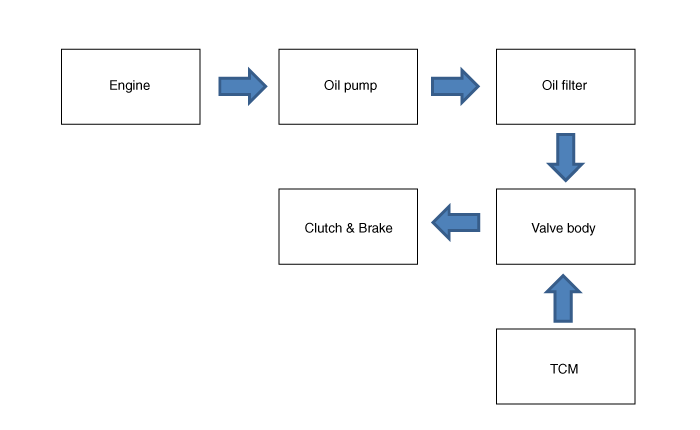

1.
The oil pump is powered by the engine.
2.
ATF passes through the oil filter and gets distributed along the oil channels.
3.
TCM controls the hydraulic pressure using solenoid valves and controls clutch and brake operations.

Hydraulic System Components and components location
Components Location 1. Automatic transaxle 2. Oil filter 3. Mechanical oil pump 4. Converter housing 5. Torque converter ...

Oil Pump Description and operation
Description • The oil pump is integrated with 26 brake chamber. • Rotation of the pump builds the hydraulic pressure needed for lubr ...
