Kia Sportage: Smart Power Liftgate / How to use the Smart Power Liftgate

Kia Sportage QL (2015-2019) Owners Manual / Features of your vehicle / Power liftgate / Smart Power Liftgate / How to use the Smart Power Liftgate

The liftgate can be opened with notouch activation satisfying all the conditions below.

✽ NOTICE

1. Setting

To activate the Smart Power Liftgate, go to User Settings Mode and select Smart Power Liftgate on the LCD display.

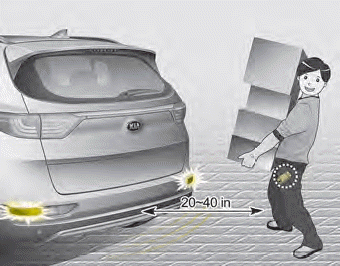

2. Detect and Alert

If you are positioned in the detecting area (20 ~ 40 inches (50 ~ 100 cm) behind the vehicle) carrying a smart key, the hazard warning lights will blink and chime will sound for about 3 seconds to alert you the smart key has been detected and the liftgate will open.

✽ NOTICE

Do not approach the detecting area if you do not want the liftgate to open. If you have unintentionally entered the detecting area and the hazard warning lights and chime starts to operate, leave the detecting area with the smart key. The liftgate will stay closed.

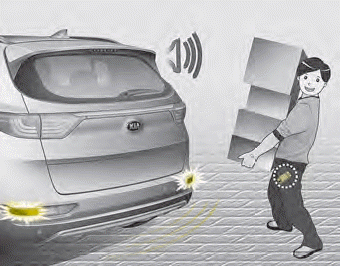

3. Automatic opening

The hazard warning lights will blink and chime will sound 2 times and then the liftgate will open.

Make sure you close the liftgate before driving your vehicle.

Make sure there are no people or objects around the liftgate before opening or closing the liftgate. Make sure objects in the liftgate do not come out when opening the liftgate on a slope. It may cause serious injury. Make sure to deactivate the Smart Power Liftgate when washing your vehicle. Otherwise, the liftgate may open inadvertently. The key should be kept out of reach of children. Children may inadvertently open the Smart Power Liftgate while playing around the rear area of the vehicle.

CAUTION - Liftgate lift

Make certain that you close the liftgate before driving your vehicle. Possible damage may occur to the liftgate lift cylinders and attached hardware if the liftgate is not closed prior to driving.

Smart Power Liftgate
On a vehicle equipped with a smart key, the liftgate can be opened using the Smart Power Liftgate system. ...

How to deactivate the Smart Power Liftgate function using the smart key
1. Door lock 2. Door unlock 3. Liftgate open 4. Panic If you press any button of the smart key during the Detect and Alert stage, the Smart Power Liftgate function will be deactivated. Make s ...
