Kia Sportage: Lighting / High Beam Assist

Kia Sportage QL (2015-2024) Owners Manual / Features of your vehicle / Lighting / High Beam Assist

The High Beam Assist is a system that automatically adjusts the headlamp range (switches between high beam and low beam) according to the brightness of other vehicles and road conditions.

Operating condition

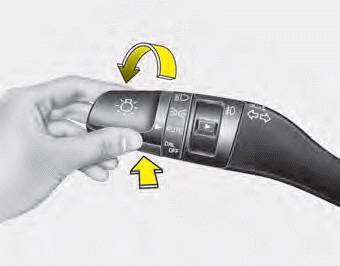

1.Place the light switch in the AUTO position.

2.Turn on the high beam by pushing the lever away from you.

The High Beam Assist () indicator will illuminate.

3.The High Beam Assist will turn on when vehicle speed is above 25mph (40kph).

4.If the light switch is placed to the headlamp position, the High Beam Assist will turn off and the low beam will be on continuously.

The high beam switches to low beam in the below conditions.

- When the High Beam Assist is off.
- When the light switch is not in the AUTO position.
- When the headlamp is detected from the on-coming vehicle.
- When the tail lamp is detected from the front vehicle.
- When the surrounding is bright enough high beams are not needed.
- When streetlights or other lights are detected.
- When vehicle speed is below 15mph (24kph).
- When headlamp / taillamp of bicycle/ motorcycle is detected

The system may not operate normally in the below conditions.

✽ NOTICE
