Kia Sportage: Fuel Delivery System / Fuel Sender Repair procedures

Kia Sportage QL (2015-2019) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Sender Repair procedures

Removal

1.	Remove the fuel pump. (Refer to Fuel Delivery System - "Fuel Pump")

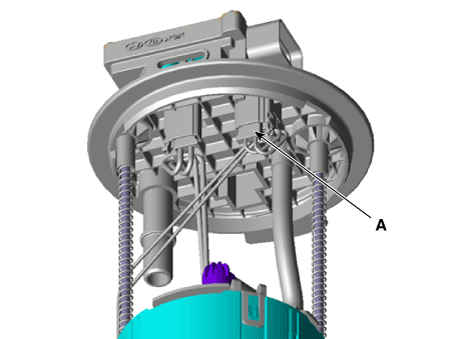

2.	Disconnect the fuel sender connector (B).

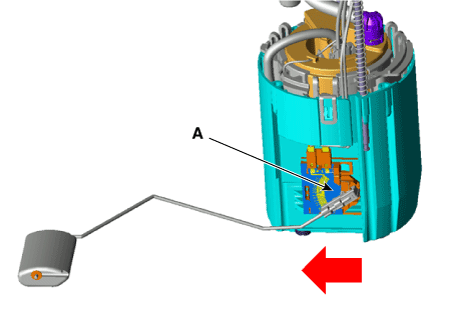

3.	Remove the fuel sender (A) in the direction of an arrow.

Installation

1.	Install in the reverse order of removal.

Fuel Pump Motor Repair procedures

Removal 1. Remove the fuel pump. (Refer to Fuel Delivery System - "Fuel Pump") 2. Disconnect the electric pump wiring ...

Fuel Pressure Regulator Repair procedures

Removal 1. Remove the fuel pump. (Refer to Fuel Delivery System - "Fuel Pump") 2. Disconnect the electric pump wiring ...
