Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the left luggage side trim. (Refer to body - "Luggage Side Trim")

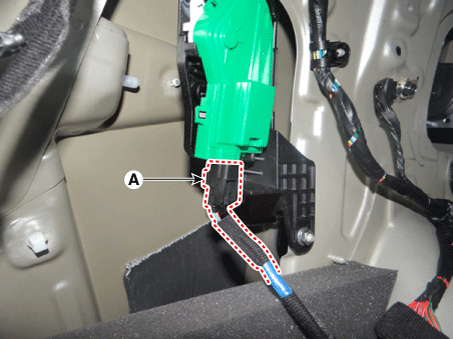

3.	Disconnect the fuel filler door unlock actuator connector (A).

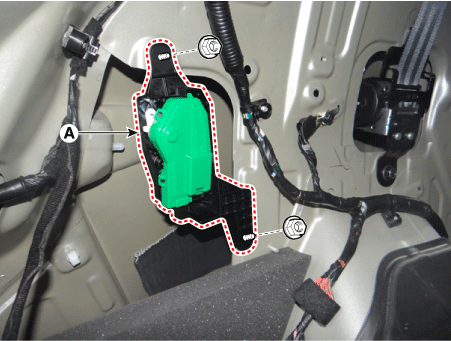

4.	Remove the fuel filler door unlock actuator (A) after loosening the mounting nuts.

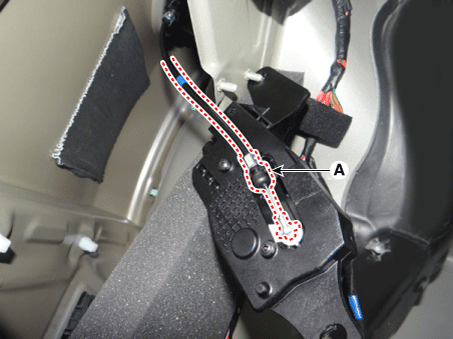

5.	Remove the fuel filler door unlock actuator cable (A).

Installation

1.	Install the fuel filler door unlock actuator cable.

2.	Install the fuel filler door unlock actuator.

3.	Connect the fuel filler door unlock actuator connector.

4.	Install the left luggage side trim.

5.	Connect the negative (-) battery terminal.

Inspection

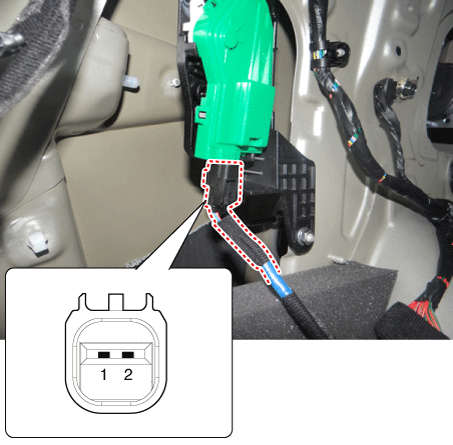

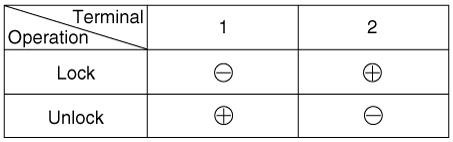

1.	Check for continuity between terminals No. 1 and No. 2. If there is no continuity, replace the fuel filler door unlock actuator.
