Kia Sportage: ESP(Electronic Stability Program) System / Front Wheel Speed Sensor Components and components location

Kia Sportage QL (2015-2024) Service Manual / Brake System / ESP(Electronic Stability Program) System / Front Wheel Speed Sensor Components and components location

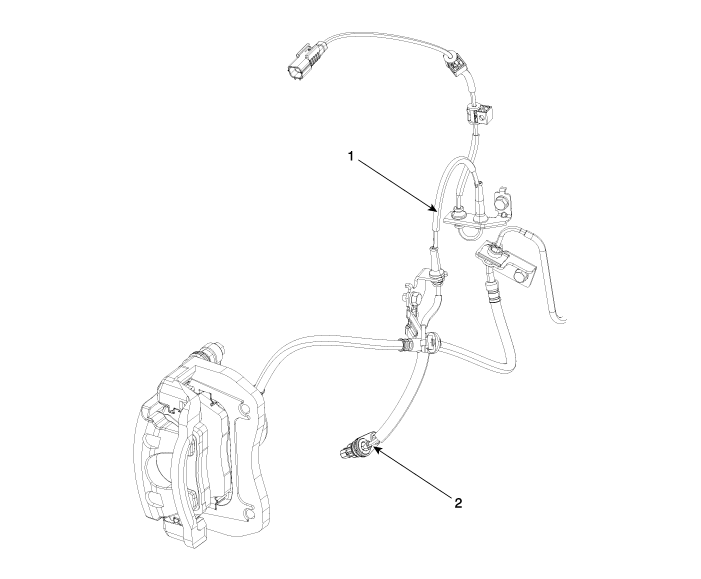

Components

1. Front wheel speed sensor cable
2. Front wheel speed sensor
