Kia Sportage: Windshield Wiper/Washer / Front Washer Motor Repair procedures

Kia Sportage QL (2015-2024) Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Washer Motor Repair procedures

Inspection

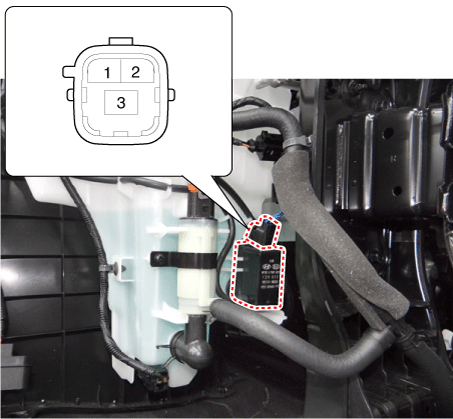

Front Washer Motor

With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

•	Before filling the reservoir tank with water, check the filter for foreign material or contamination. if necessary, clean the filter.

2.	Connect positive (+) battery cables to terminal 1 and negative (-) battery cables to terminal 2 respectively.

3.	Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.

If they are abnormal, replace the washer motor.

[Front & Rear washer]

No.	Description
1	Front windshield washer (+)
2	Ground
3	Rear washer (+)

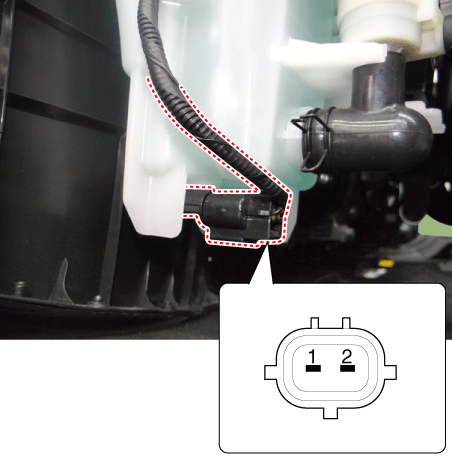

Washer Fluid Level Sensor Switch

1.	Disconnect the negative (-) battery terminal.

2.	Drain the washer fluid less than 650 cc.

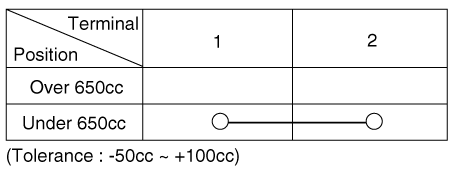

3.	Check for continuity between the No. 1 and No.2 terminal in each float position. There should be continuity when the float is down. There should be no continuity when the float is up.

4.	If the continuity is not as specified, replace the washer fluid level switch

5.	If the continuity is not as specified, replace the washer fluid level switch.

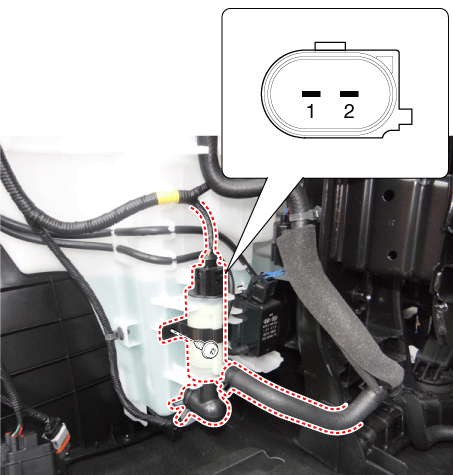

Head Lamp Washer Motor

With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

Before filling the reservoir tank with water, check the filter for any foreign material or contamination. If necessary, clean the filter.

2.	Connect positive (+) battery cables to terminal 1 and negative (-) battery cables to terminal 2.

3.	Check that the motor operates normally, the washer motor runs and water sprays from the head lamp washer nozzles.

4.	If there is an abnormality, replace the head lamp washer motor.

Removal

Front Washer Motor

1.	Disconnect the negative (-) battery terminal.

2.	Remove the engine room under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover")

3.	Remove the front wheel guard [RH]. (Refer to Body - "Front Wheel Guard")

4.	Drain the washer fluid to less than 650 cc.

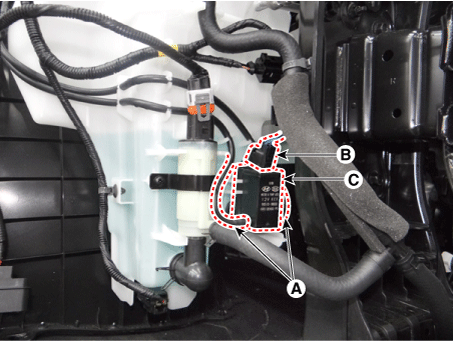

5.	Disconnect the washer hose (A) and washer motor connector (B).

6.	Remove the front washer motor (C).

Washer Fluid Level Sensor Switch

1.	Disconnect the negative (-) battery terminal.

2.	Remove the engine room under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover")

3.	Remove the front wheel guard [RH]. (Refer to Body - "Front Wheel Guard")

4.	Drain the washer fluid to less than 650 cc.

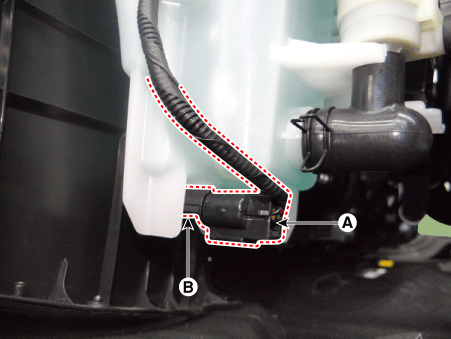

5.	Remove the washer fluid level sensor switch (B) after disconnecting the connector (A).

Reservoir Tank

1.	Disconnect the negative (-) battery terminal.

2.	Remove the engine room under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover")

3.	Remove the front wheel guard [RH]. (Refer to Body - "Front Wheel Guard")

4.	Drain the washer fluid to less than 650 cc.

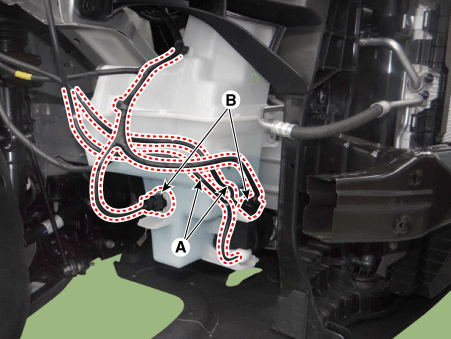

5.	Disconnect the washer hoses (A) and connector (B).

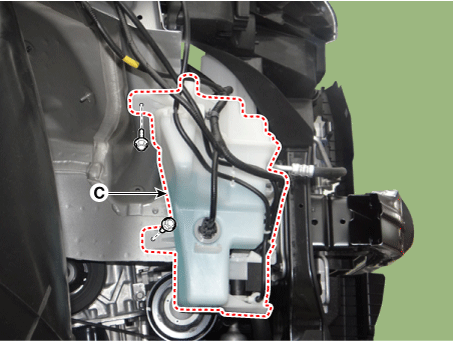

6.	Remove the reservoir tank (C) after loosening the bolts.

Installation

Front Washer Motor

If necessary, clean the washer motor filter.

Before installing the pump motor, check the filter for any foreign material or contamination. If necessary, clean the filter in the pump motor.

2.	Install the front washer motor.

3.	Connect the front washer motor connector.

4.	Install the front wheel guard [RH].

5.	Install the engine room under cover.

6.	Connect the negative (-) battery terminal.

Washer Fluid Level Sensor Switch

If necessary, clean the washer motor filter.

Before installing the pump motor, check the filter for any foreign material or contamination. If necessary, clean the filter in the pump motor.

2.	Install the washer fluid level sensor switch.

3.	Connect the washer fluid level sensor switch connector.

4.	Install the front wheel guard [RH].

5.	Install the engine room under cover.

6.	Connect the negative (-) battery terminal.

Reservoir Tank

If necessary, clean the washer motor filter.

Before installing the pump motor, check the filter for any foreign material or contamination. If necessary, clean the filter in the pump motor.

2.	Install the reservoir tank.

3.	Install the washer motor hose and connectors.

4.	Install the front wheel guard [RH].

5.	Install the engine room under cover.

6.	Connect the negative (-) battery terminal.
