Kia Sportage: Interior Trim / Front Pillar Trim Components and components location

Kia Sportage QL (2015-2025) Service Manual / Body (Interior and Exterior) / Interior Trim / Front Pillar Trim Components and components location

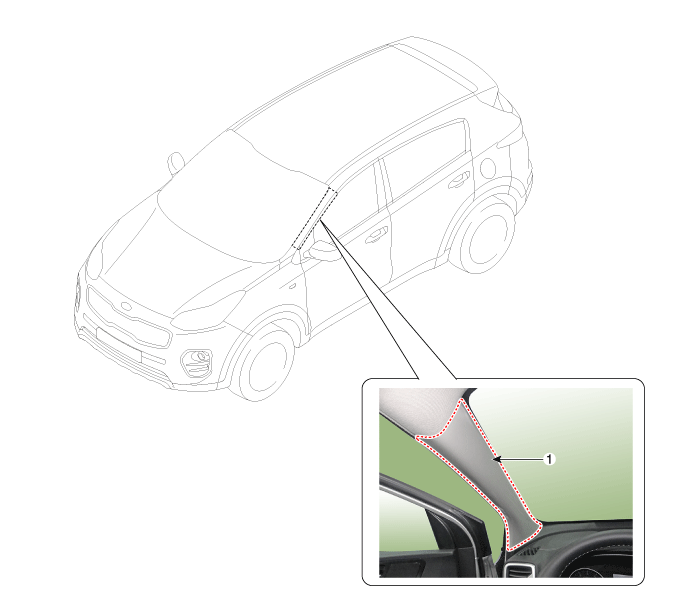

Component Location

1. Front pillar trim
