Kia Sportage: Floor Console / Floor Console Assembly Repair procedures

Kia Sportage QL (2015-2024) Service Manual / Body (Interior and Exterior) / Floor Console / Floor Console Assembly Repair procedures

Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.

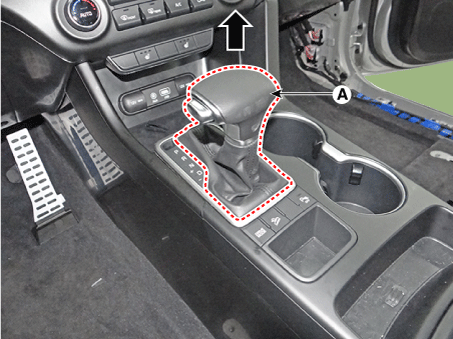

To remove the gear knob & gear boots (A) pull both of it up.

2.

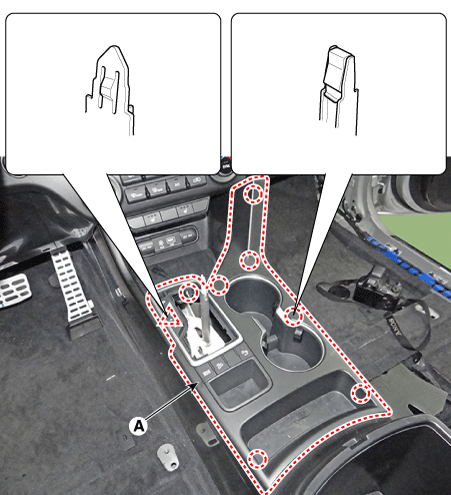

Using a remover, remove the floor console upper cover (A).

3.
Disconnect the connectors (A) from the floor console upper cover.

4.

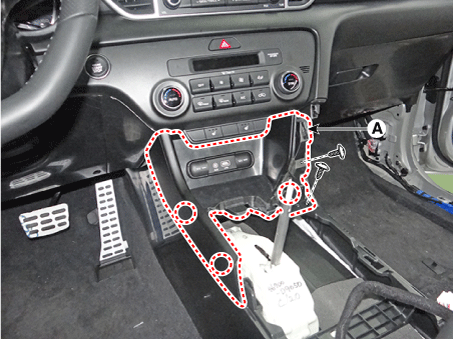

Seperate the floor console tray assembly (A).

5.

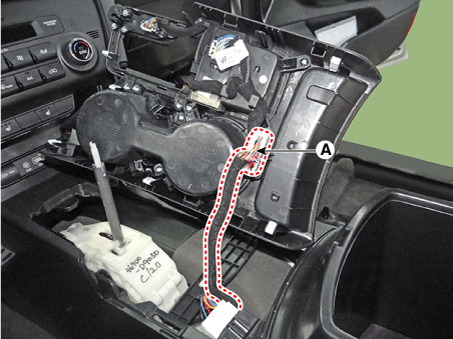

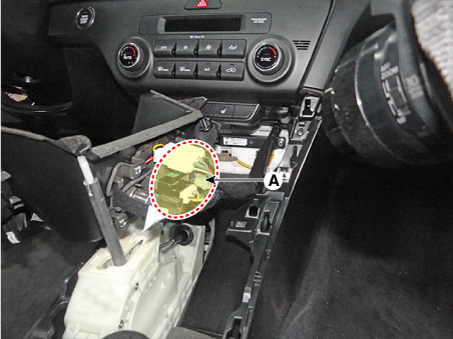

Disconnect the connectors (A) from the floor console tray.

6.

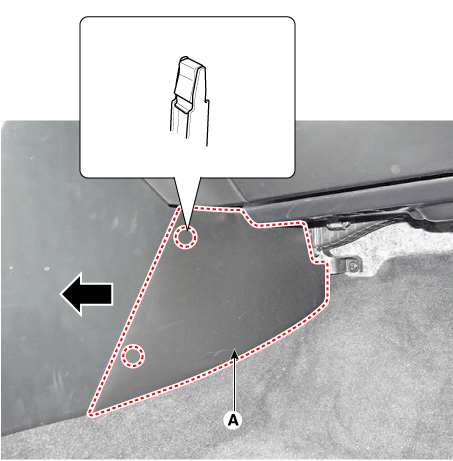

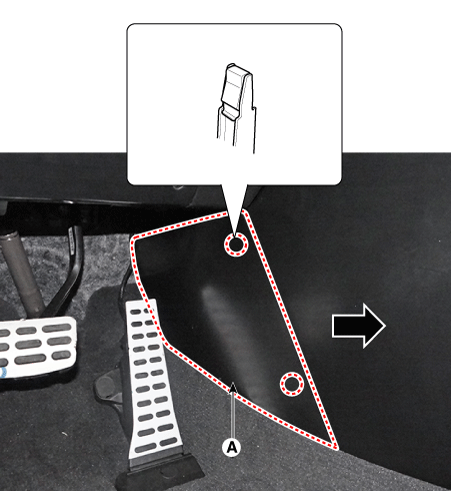

Remove the console side cover (A) by pushing it rearward.
[LH]

[RH]

7.

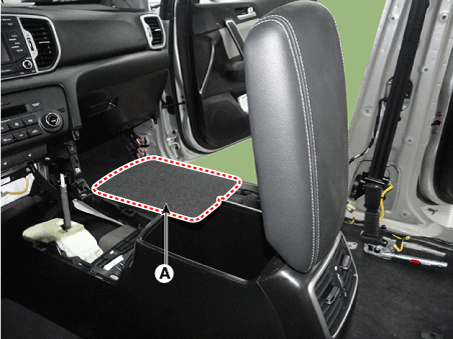

Remove the console armrest mat (A).

8.

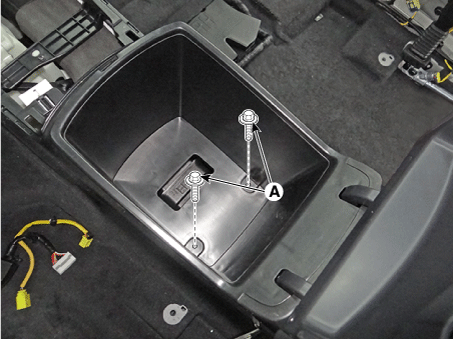

Loosen the console upper mounting bolts (A).

9.

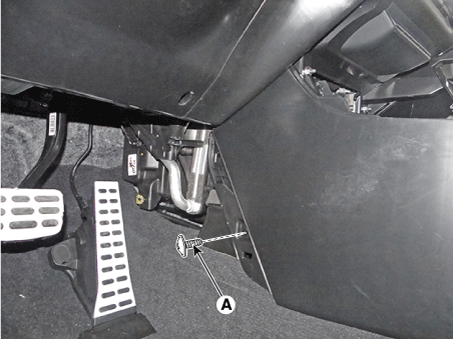

Loosen the console both side front mounting screw (A).

10.

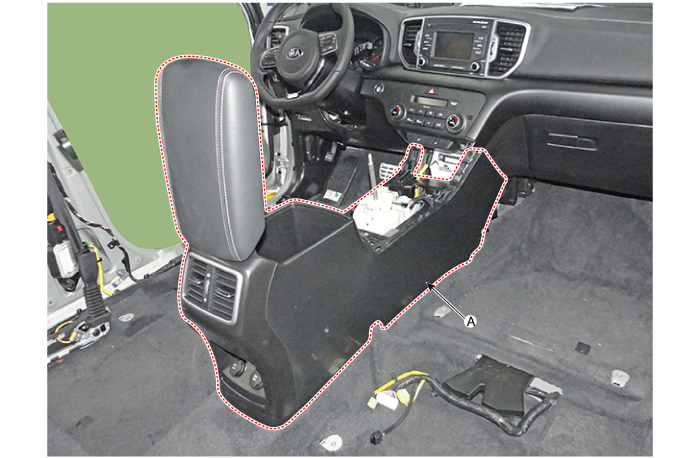

Remove the console complete (A).

11.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Replace any damaged clips.
Floor Console Assembly Components and components location
Component Location 1. Floor console assembly ...

Rear Console Cover Components and components location
Component Location 1. Rear console cover ...
