Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the right luggage side trim.
(Refer to Body - "Luggage Side Trim")
3.

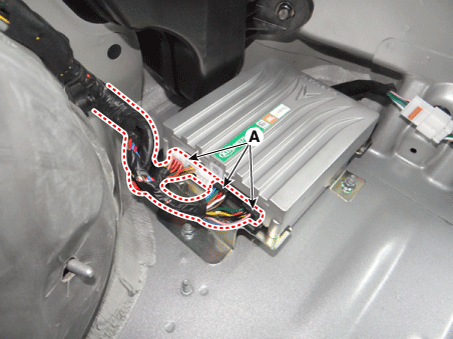

Disconnect the external amplifier connectors (A).

4.

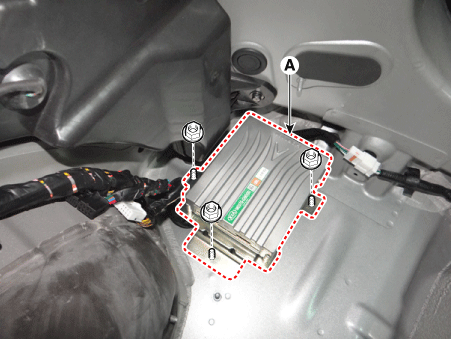

Remove the external amplifier (A) after loosening the nuts.

Installation
1.
Install the external amplifier after connecting the connectors.
2.
Install the right luggage side trim.
3.
Connect the negative (-) battery terminal.

Make sure that the external amplifier connectors are plugged in properly.
Check the AVN system for normal operation.
External AMP Components and components location
Components Connector Pin Information No. Connector A No. Connector B 1 Battery (+) 1 ...

AVN Antenna Components and components location
Components [Roof Antenna (AM/FM + GPS)] ...
