Kia Sportage: Intake And Exhaust System / Exhaust Manifold Components and components location

Kia Sportage QL (2015-2024) Service Manual / Engine Mechanical System / Intake And Exhaust System / Exhaust Manifold Components and components location

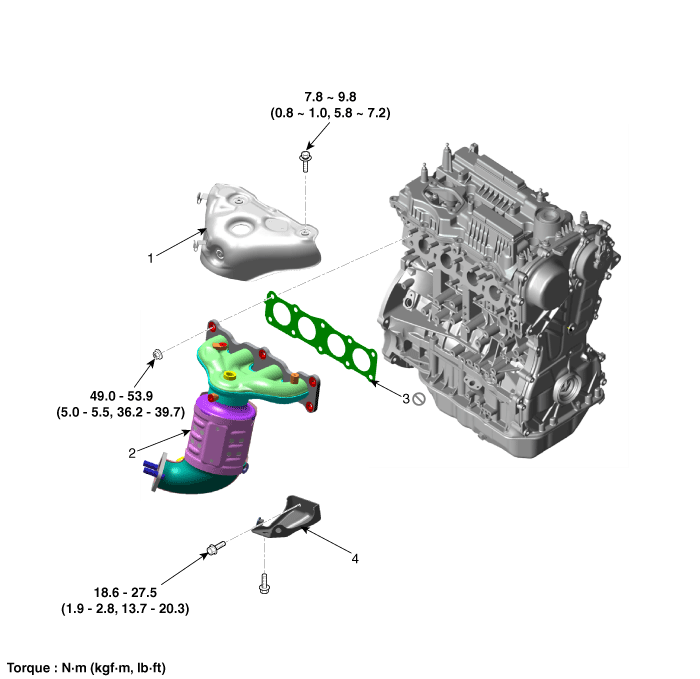

Components

1. Heat protector
2. Exhaust manifold

3. Exhaust manifold gasket
4. Exhaust manifold stay
