Kia Sportage: Airbag Module / Driver Airbag (DAB) Module and Clock Spring Components and components location

Kia Sportage QL (2015-2026) Service Manual / Restraint / Airbag Module / Driver Airbag (DAB) Module and Clock Spring Components and components location

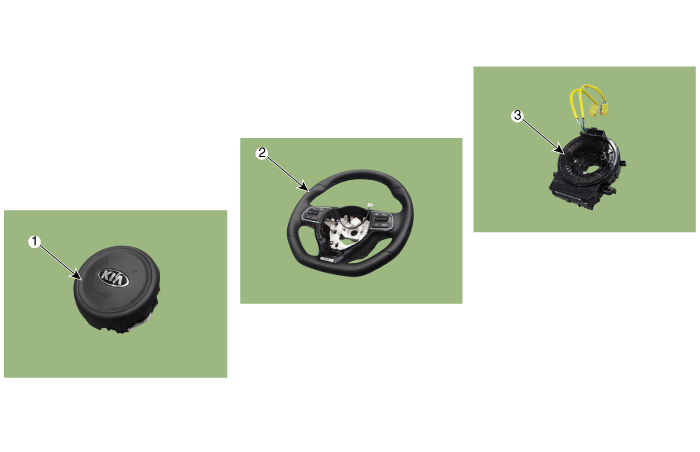

Components

1. Driver Airbag (DAB)
2. Steering wheel

3. Clock Spring

Driver Airbag (DAB) Module and Clock Spring Description and operation

Description Driver Airbag (DAB) is installed in the steering wheel and electrically connected to SRSCM via the clock spring. It protects the driver by deploying the airbag when ...

Driver Airbag (DAB) Module and Clock Spring Repair procedures

Inspection Air bag module If any improper parts are found during the following inspection, replace the airbag module with a new one. ...
