Kia Sportage: Lane Departure Warning System (LDWS) / Description and operation

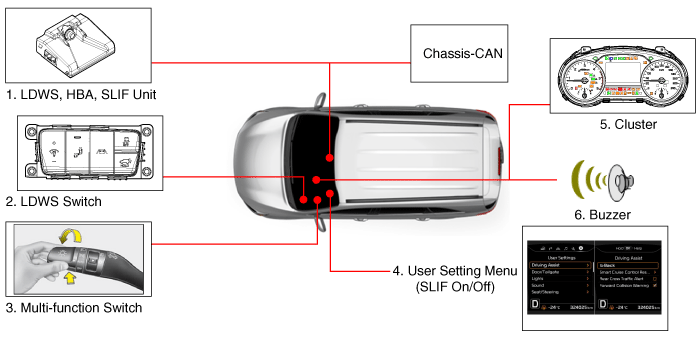

Block Diagram
Components of LDWS
No
|
Item
|
Function
|
Position
|

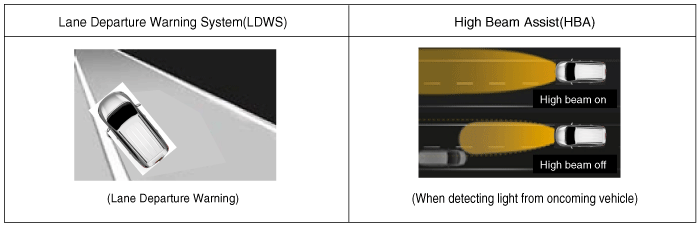

1
|
LDWS Unit
|
1) |
Lane Departure Warning System (LDWS) : Detects the current driving
lane ahead and engages warning function if the vehicle is in
danger of departing from the current driving lane.
|
2) |
High Beam Assist (HBA) : Detects the headlamp light from the
oncoming vehicle and taillamp light from the vehicle ahead and
turns ON/OFF the high beam.
|
3) |
Speed Limit Information Function (SLIF)
: Detects traffic signs by using the camera and displays the
speed limit by using the map data from navigation.
|
|
Windshield Glass
|
2
|
LDWS Switch
|
LDWS On/Off Switch
|
Crash Pad (Left)
|
3
|
Multifunction Switch
|
HBA On/Off Switch (MF : Auto mode)
|
Steering Wheel
|
4
|
User Setting Menu
|
SLIF On/Off, Menu
|
Cluster menu
|
5
|
Cluster/Buzzer
|
SLIF/LDWS Warning
|
Cluster
|
※ Europe : (SLIF) / China, Middle East, Australia: (LDWS)
Camera unit of the LDWS processes the following functions using the video signal
input.
– |
Detects and analyzes the current driving lane
|
– |
Detects the light from foregoing vehicle and oncoming vehicle
|
– |
Detects and analyzes the status of foregoing vehicle and oncoming vehicle,
and sets off warning sound (or message) for driver if necessary.
|
– |
Transmits the information via high speed CAN communication
|
1. |
Lane Departure Warning System (LDWS) unit
The lane departure warning system is a convenient feature that detects
the lanes ahead by using the camera image and vehicle signal data to
alarm the driver in case the vehicle deviates from the lane. It consists
of the camera unit used to detect the lane by analyzing the camera image
input signal.
The sensor module that processes screen image by sensing the lanes ahead
on the camera unit, senses the lanes and analyzes the key parameters,
i.e. vehicle center offset, road width, vehicle driving angle and road
curvature, to keep to the lane. The following procedure is the lane
detecting process through screen image processing.
(1) |
Senses the land by inputting the road image.
|
(2) |
Filters and calculates by magnifying the lane.
|
(3) |
Extracts the lane candidate point. (The constituent points are
assumed as a lane.)
|
(4) |
Senses the land by means of candidate points.
|
|
2. |

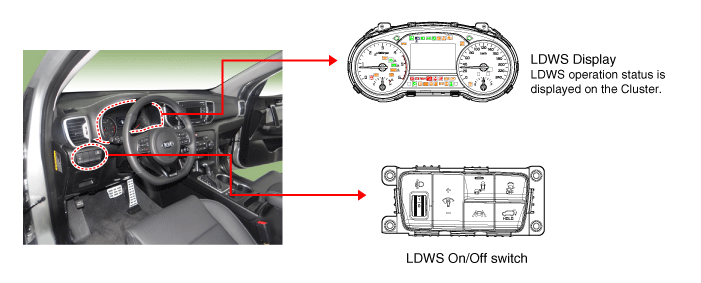

LDWS Operation process
When the LDWS switch is pressed, the operation state of the lane departure
warning system is displayed at the center of the cluster as long as
the LDWS lamp is turned on.

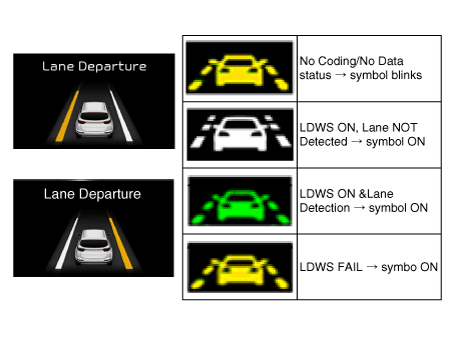

The specific classification of the displays is shown in the following
table.
Category
|
Operation
|
LDWS Display and Alert
|
Control
(Button)
|
On
|
LDWS On
|
|
Off
|
LDWS Off
|
Operation Status
|
Cluster indicator
|
Operation Condition
|
Activates if vehicle speed exceeds set speed with LDWS ON.
[Start : 60km/h (37mph) ↑]
[Stop : 55km/h (34mph) ↓]
※ Lane departure warning is not activated if turn signal or hazard
lamp is ON.
|
|
|
3. |

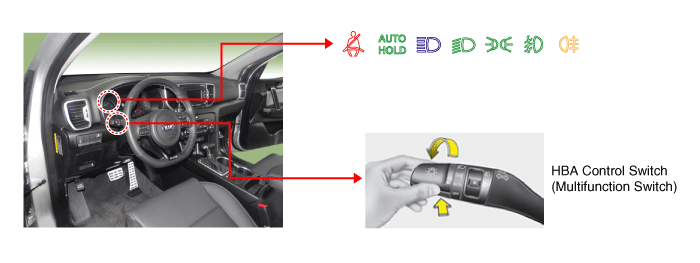

High Beam Assist
Category
|
Operation
|
LDWS Display and Alert
|
Control
(Button)
|
On
|
If High Beam switch is turned ON (push-return) while the Multifunction
Switch is set to Auto.
|
HBA On + Low beam
HBA On + High beam
|
Off
|
If High Beam switch is activated again while the Multifunction switch
is NOT set to Auto or when HBA is ON.
|
Operation Status
|
Cluster display
|
Operation Condition
|
Activates if vehicle speed exceeds set speed with HBA ON.
[Start: 45km/h (28mph) ↑]
[Stop: 35km/h (22mph) ↓]
※ Activates only if Multifunction switch is set to Auto and Low
Beam is ON.
|
|
|

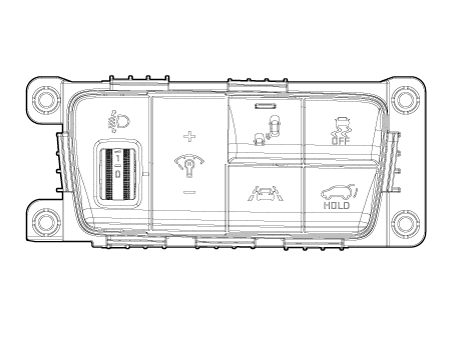

LDWS ON/OFF switch (A)
When the LDWS switch is pressed, the LDWS is activated as long as the LDWS lamp
is turned on. When the switch is pressed again, the LDWS is turned off and the
display lamp is turned off.

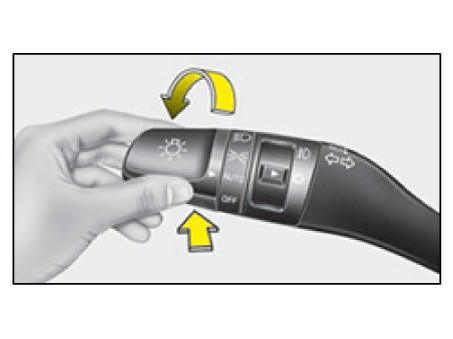

High Beam Auto Control Switch: High Beam Auto Control System is turned ON if
the Multifunction Switch Light SW is set to AUTO, and the Light SW is set to
High Beam position (Pushed).
– |
If the Light SW is not set to AUTO, or to High Beam position, the High
Beam Auto Control System is turned OFF.
|
Alarm of LDWS
1. |
Visual alarm : The lane toward the direction of departure blinks in
"amber".
|
Operating conditions of LDWS
The operating conditions of LDWS are as below.
1. |
The LDWS switch is turned "ON". The LDWS lamp on the instrument panel
is turned on when the switch is on.
|
2. |
LDWS function is set and the vehicle speed exceeds 60 km/h (37 mph).
The alarm stops momentarily when the vehicle speed falls below 60 -
55 km/h (37 - 34 mph) and restarts if the vehicle speed is over 60 km/h
(37 mph).
|
3. |
If the driver operates the left or right turn signal lamps to show the
intention of lane change, the alarm will be deactivated regardless of
the direction of lane departure.
The lane departure alarm function restarts 2 seconds after switching
off the left or right turn signal lamps. The alarm is deactivated while
operating the hazard lamps.
|
4. |
Switch on the turn signal lamp before changing the lanes. Arbitrary
change of lanes without operating the turn signal to the driving direction
will generate alarm.
|
5. |
When more than 40% of the vehicle body has crossed the lane, the alarm
is released by sensing departure for lane change.
|
6. |
The lane departure alarming is not made when the vehicle drives at the
center of the lane.
Note that LDWS may not operate properly in the following conditions.
•
|
When the lane is not well visible due to rain, snow,
dust, puddle or other foreign materials
|
•
|
When the sight is unclear due to bad weather such as
fog/heavy rain/heavy snow
|
•
|
When solar beam, street lamp or light from approaching
car is reflected on the wet surface of the road
|
•
|
When the brightness has changed abruptly after exiting
from the tunnel
|
•
|
When the back light is illuminated strongly against
the vehicle direction
|
•
|
When the headlamps are not used or the light beam is
too weak at night or inside the tunnel
|
•
|
When the lane is not distinctive and the road is damaged
|
•
|
When the shadow of median strip covers the lane
|
•
|
When the lane and road are not distinguished due to
dust on the lane
|
•
|
When there are more than 2 lanes to the left or right
such as bus only lanes
|
•
|
On winding road or steep road
|
•
|
When there are signs other than the lane on the road
surface near the lane or signs similar to the lane (e.g.
Arrow)
|
•
|
When there is a boundary structure such as the sidewalk
block
|
•
|
When the windshield or LDWS camera lens is contaminated
by moisture or foreign material
|
•
|
When the distance to the foregoing car is extremely
short or the foregoing car is driving on the lane
|
•
|
When the vehicle is severely shaking
|
•
|
When the vehicle is passing diverging or converging
lanes or complicated crossing of lanes (e.g. Interchange
and tollgate)
|
•
|
When an object is placed on the dashboard
|
•
|
Arrow on the road surface
|
•
|
When the lane is too narrow or too wide
|
•
|
When the color of the lane is hard to be distinguished
from the road
|
•
|
When the temperature around the inside rearview mirror
is very high due to direct sunlight
|
•
|
When the LDWS cannot sense the color of the lane due
to surrounded lighting (e.g. Inside the tunnel, the
section of sodium lamps at night or during rain)
|
•
|
When the sight is not good enough to sense the other
lanes
|
|
•
|
This system does not operate when the vehicle speed
is under 60km/h (37mph) or the lane marking is not sensed.
|
•
|
Do not use windshield tinting and do not place stickers
or accessories around the inside rearview mirror.
|
•
|
Keep the LDWS away from water.
|
•
|
Do not disassemble or impact on the LDWS parts randomly.
|
•
|
Do not place the reflective material (white paper or
mirror) on the dashboard as sunlight reflection may
cause malfunction.
|
•
|
Driver may not be able to hear the LDWS alarm sound
due to excessive noise.
|
|
|
Components
1. LDWS ON/OFF switch
2. Instrument cluster
3. LDWS unit
...
Service Point Target Auto
Calibration (SPTAC)
This procedure provides a way to calibrate the camera by having the service
technician align the car to a well lit simulated straig ...
