Kia Sportage: Maintenance / Engine compartment

Kia Sportage QL (2015-2026) Owners Manual / Maintenance / Engine compartment

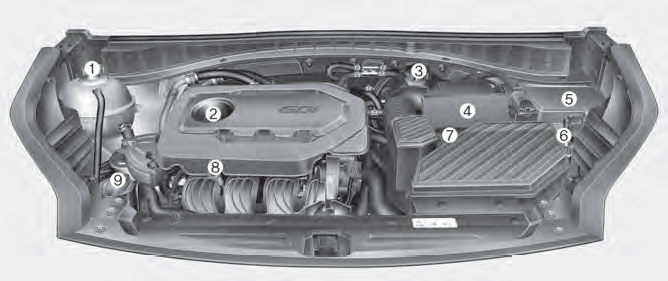

■ THETA 2.4L - GDI

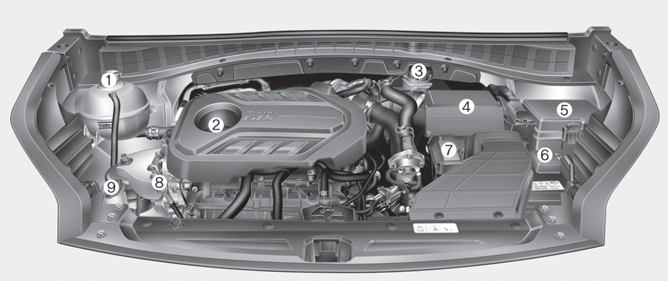

■ THETA 2.0L T-GDI

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9.Windshield washer fluid reservoir
