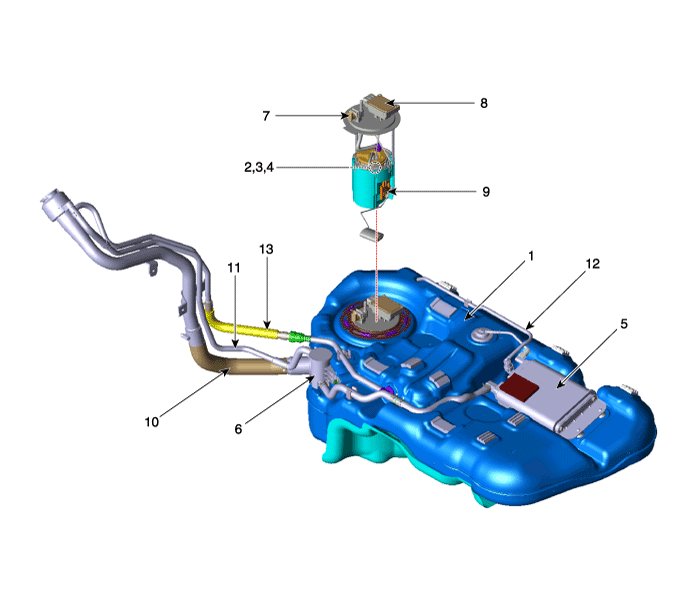

Components Location

1. Fuel tank
2. Fuel pump
3. Fuel filter
4. Fuel pressure regulator
5. Canister
6. Fuel tank air filter
7. Fuel perssure sensor
8. Fuel pump control module (FPCM)
9. Fuel level sender (FLS)
10. Fuel filler hose
11. Ventilation tube
12. Vapor tube
13. Leveling hose

[High Pressure Fuel Line]

1. High Pressure Fuel Pump
2. High Pressure Fuel Pipe
3. Delivery Pipe
4. Injector


Whenever the high pressure fuel pump, fuel pipe, deliverypipe, or injector is removed immediately after shutting offthe engine, an injury may be caused by the release ofhighly pressurized fuel. Release the residual pressure inthe high pressure fuel line by referring to the "Residualfuel pressure release procedure" below before removingany high pressure fuel system components.
Fuel Delivery System
...

Fuel pressure test (low pressure system)
Fuel Pressure Test (Low pressure system) 1. Release the residual pressure in fuel line. (Refer to the Fuel Delivery System - Inspection - "Release Re ...
