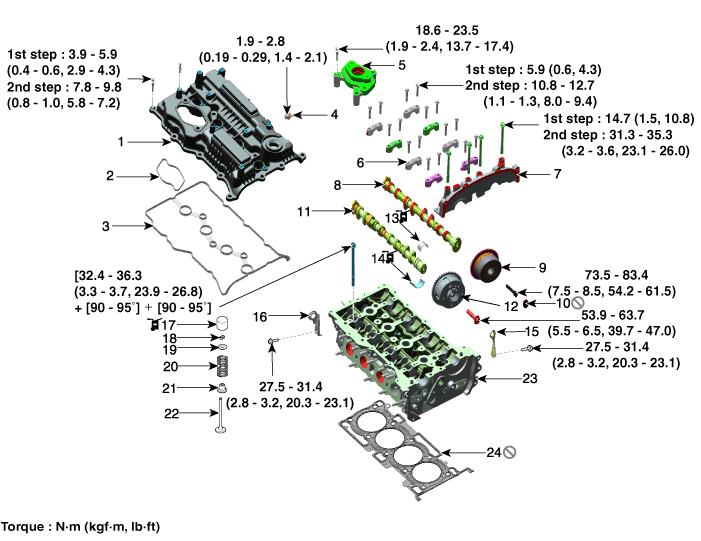

Components

1. Cylinder head cover
2. Fuel pump bracket gasket
3. Cylinder head cover gasket
4. Positive Crankcase Ventilation (PCV) valve
5. Fuel pump bracket
6. Camshaft bearing cap
7. Camshaft front bearing cap
8. Intake camshaft
9. Intake E-CVVT assembly
10. E-CVVT plug
11. Exhaust camshaft
12. Exhaust CVVT assembly
13. Exhaust camshaft upper bearing
14. Exhaust camshaft lower bearing
15. Front engine hanger
16. Rear engine hanger
17. Mechanical lash adjuster (MLA)
18. Retainer lock
19. Retainer
20. Valve spring
21. Valve stem seal
22. Valve
23. Cylinder head
24. Cylinder head gasket

Cylinder Head Assembly
...

Valve clearance inspection and adjustment
Valve Clearance Inspection And Adjustment    In case of removing the high pressure fuel pump, high pressure fue ...
