Kia Sportage: Rear Glass Defogger / Components and components location

Kia Sportage QL (2015-2019) Service Manual / Body Electrical System / Rear Glass Defogger / Components and components location

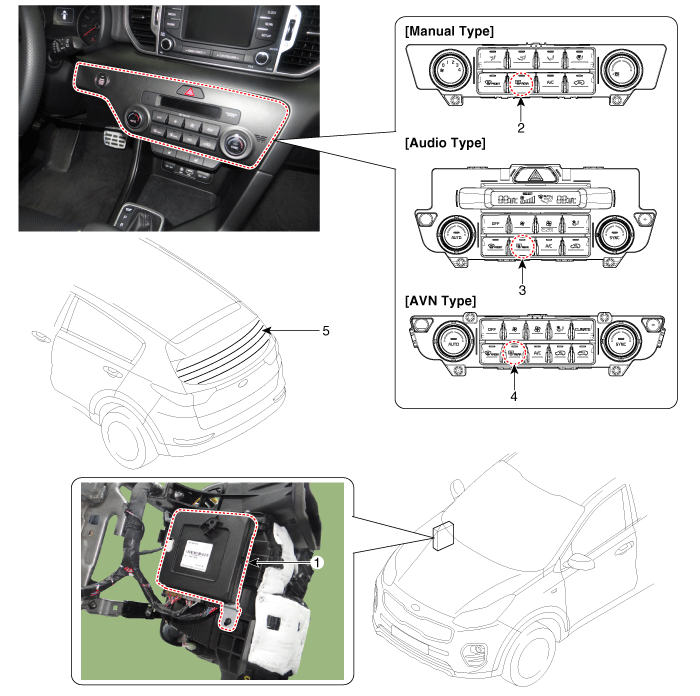

Component Location

1. Body control module (BCM)
2. Rear glass defogger switch (Manual Type)
3. Rear glass defogger switch (Audio Type)
4. Rear glass defogger switch (AVN Type)
5. Rear glass defogger

Rear Glass Defogger
...

Rear Glass Defogger Printed Heater Repair procedures
Inspection    • Wrap tin foil around the end of the voltmeter test lead to prevent ...
