Kia Sportage: Front Seat Belt / Components and components location

Kia Sportage QL (2015-2022) Service Manual / Body (Interior and Exterior) / Front Seat Belt / Components and components location

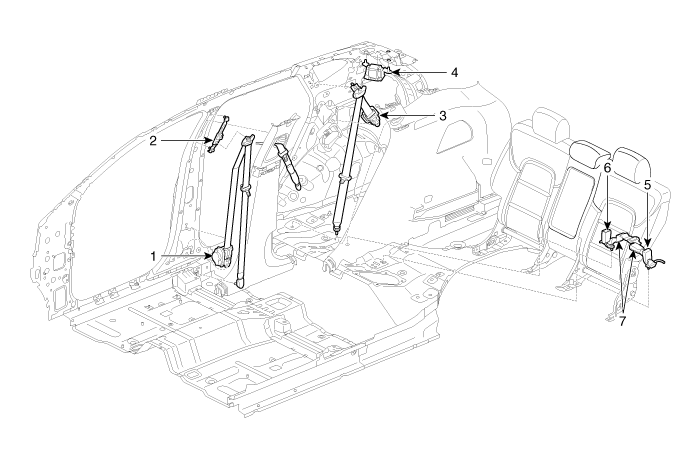

Components

1. Front seat belt retractor
2. Height adjuster
3. Rear seat belt retractor [side]
4. Rear seat belt retractor [center]
5. Rear seat belt buckle [LH]
6. Rear seat belt buckle [RH]
7. Rear seat belt buckle [center]

Front Seat Belt
...

Front Seat Belt Retractor Components and components location
Component Location 1. Front seat belt retractor ...
