Kia Sportage: Engine Control System / Camshaft Position Sensor (CMPS) Schematic diagrams

Kia Sportage QL (2015-2025) Service Manual / Engine Control / Fuel System / Engine Control System / Camshaft Position Sensor (CMPS) Schematic diagrams

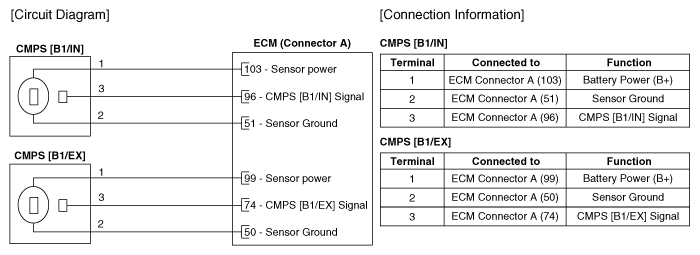

Circuit Diagram

Camshaft Position Sensor (CMPS) Description and operation
Description Camshaft Position Sensor (CMPS) is a hall sensor and detects the camshaft position by using a hall element. It is related with Crankshaft Position Sensor (CKPS) and ...

Camshaft Position Sensor (CMPS) Repair procedures
Inspection 1. Check the signal waveform of the CMPS and CKPS using the KDS/GDS. Specification: Refer to “Wave Form” ...
