Components Location

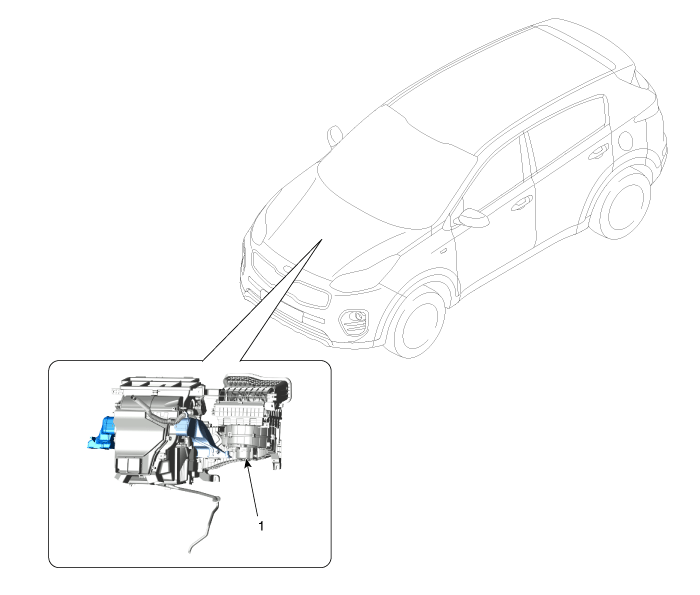

1. Blower Unit

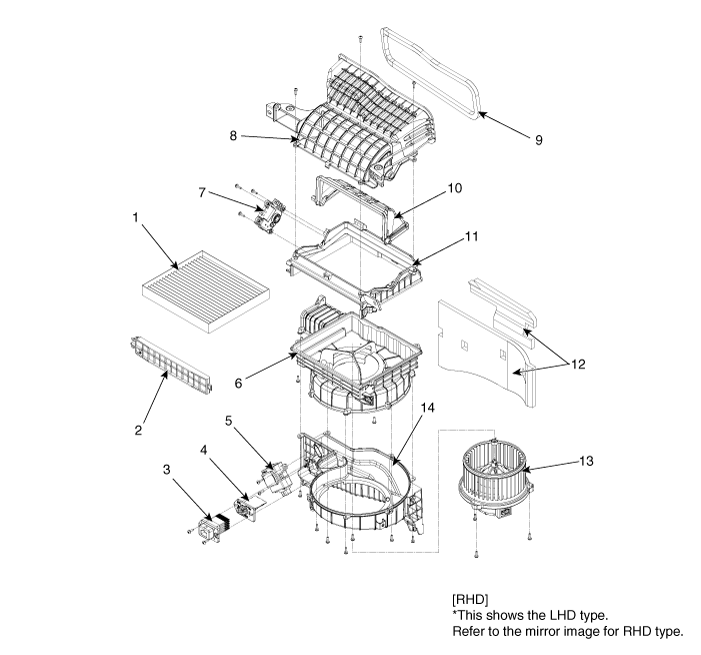

Components

1. Air Filter
2. Air Filter Cover
3. FET Assembly
4. Blower Resistor Assembly
5. Cluster Ionizer
6. Blower Case [Upper]
7. Intake Actuator
8. Intake Case [Upper]
9. Intake Seal
10. Intake Door Assembly
11. Intake Case [Lower]
12. Anti Noise Pad
13. Blower Motor
14. Blower Case [Lower]

Blower
...

Blower Unit Repair procedures
Replacement 1. Disconnect the negative (-) battery terminal. 2. Recover the refrigerant with a recovery/recycling/charging station. ...
