Kia Sportage: AVN System / AVN Remote Controller Repair procedures

Kia Sportage QL (2015-2021) Service Manual / Body Electrical System / AVN System / AVN Remote Controller Repair procedures

Inspection
1.

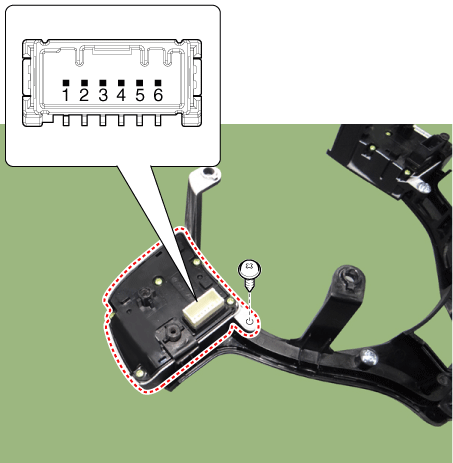

Check for resistance between terminals in each switch position (LH).

[LH : Audio + Hands free]
Switch
Connector
terminal
Resistance
(±5%)
SEEK Up
2-5
430 Ω
SEEK Down
1.11 kΩ
MODE
2.11 kΩ
MUTE
3.11 kΩ
Volume (+)
4.61 kΩ
Volume (-)
6.81 kΩ
Voice
10.71 kΩ
END
18.91 kΩ
SEND
40.91 kΩ

2.

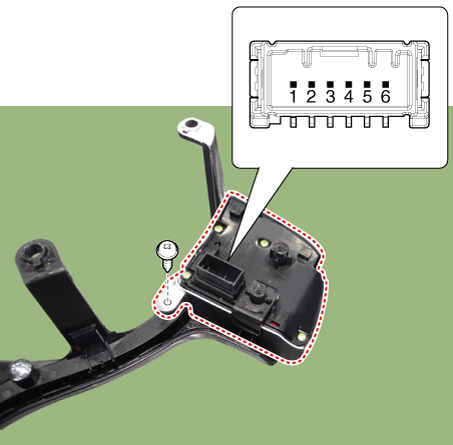

Check for resistance between terminals in each switch position (RH).

[RH : Trip + Cruise]
Switch
Connector
terminal
Resistance
(±5%)
Cancel
3-5
390 Ω
SET -
610 Ω
RES +
910 Ω
Cruise ON/OFF
1.38 kΩ
SCC (Following distance control)
3.63 kΩ
Group
2-5
390 Ω
Trip Up
610 Ω
Trip Down
910 Ω
ENTER
1.38 kΩ

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering wheel assembly.
(Refer to Steering System - "Steering Wheel")
3.

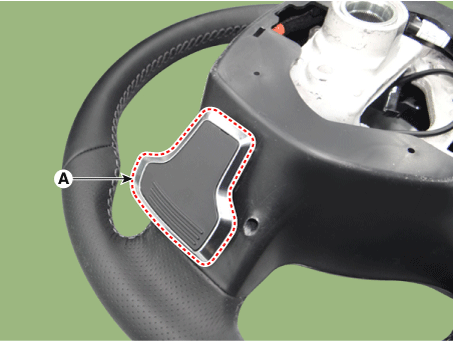

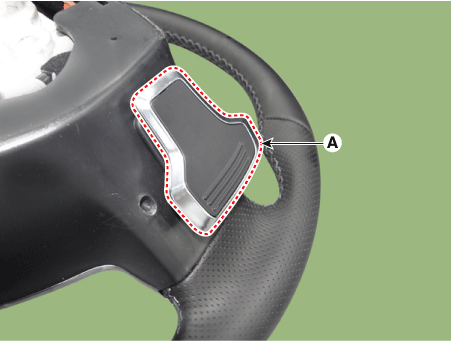

Remove the paddle shift switch (A) after loosening the mounting screws.
[LH]

[RH]

4.

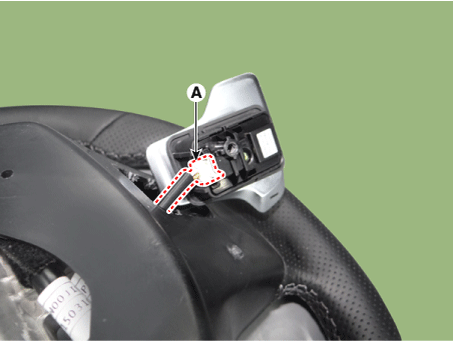

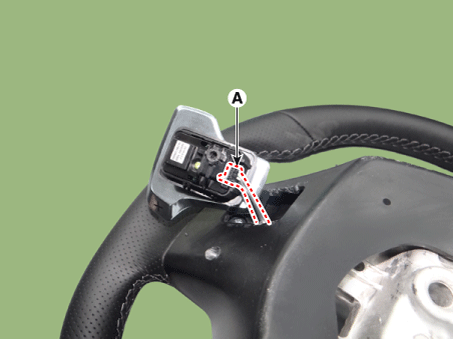

Disconnect the paddle shift switch connector (A).
[LH]

[RH]

5.

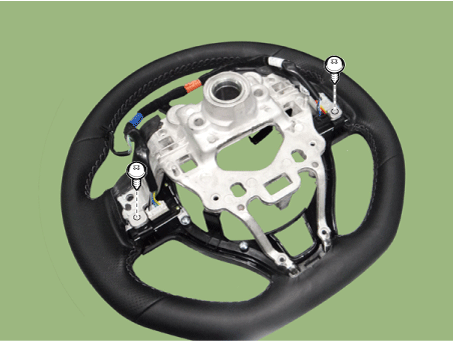

Remove the steering back cover (A) after loosening the mounting screws.

6.

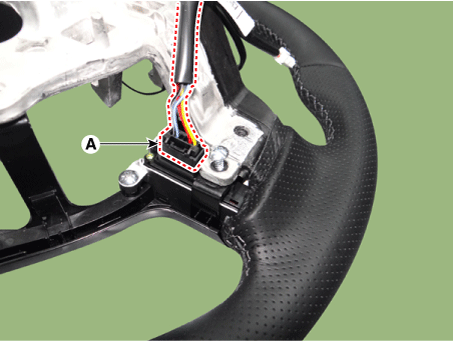

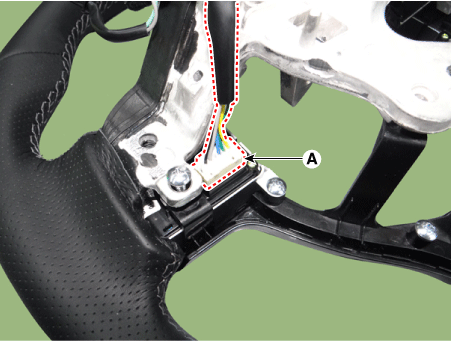

Disconnect the steering wheel remote control connector (A).
[LH]

[RH]

7.

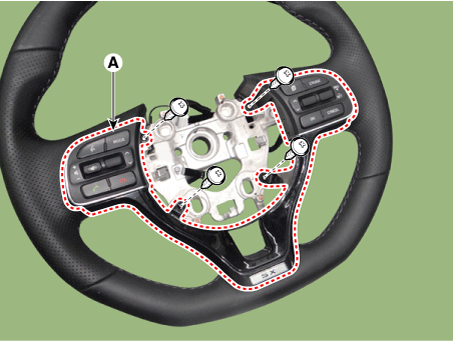

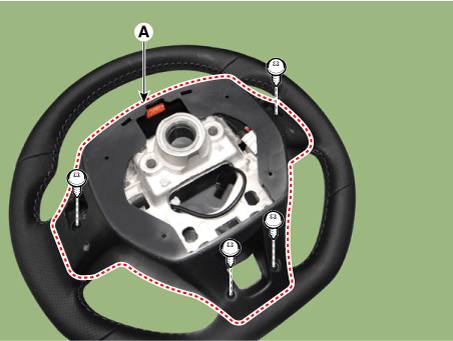

Remove the steering wheel remote control assembly (A) after loosening the mounting screws.

8.

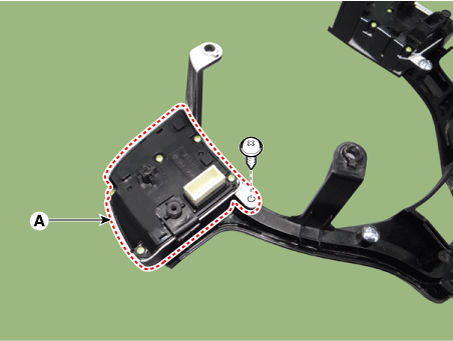

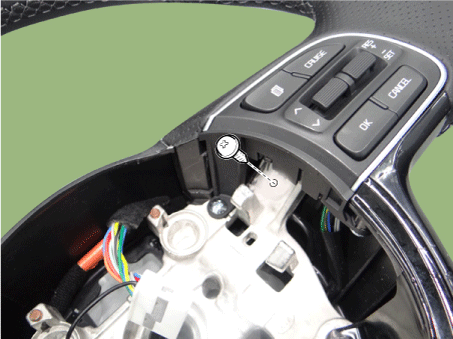

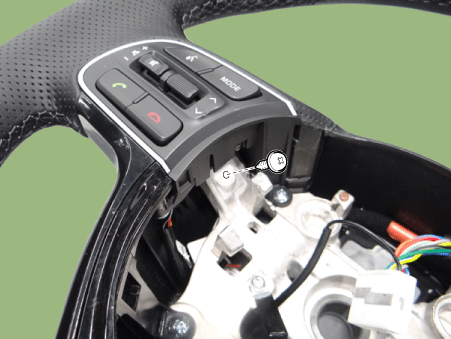

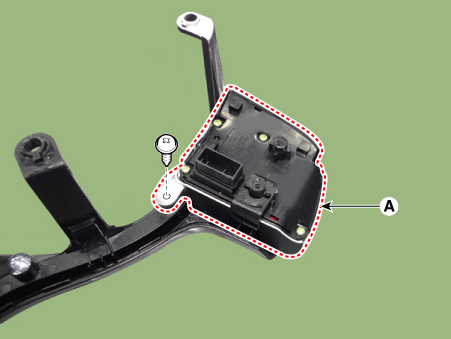

Remove the steering wheel remote control (A) after loosening the mounting screws.
[LH]

[RH]

Installation
1.
Install the steering wheel remote control.
2.
Install the steering wheel remote control assembly.
3.
Connect the steering wheel remote control connector.
4.
Install the steering back cover.
5.
Connect the paddle shift switch connector.
6.
Install the paddle shift switch.
7.
Install the steering wheel and driver airbag module.
8.
Connect the negative (-) battery terminal.
