Kia Sportage: AVN System / AVN Keyboard Components and components location

Kia Sportage QL (2015-2019) Service Manual / Body Electrical System / AVN System / AVN Keyboard Components and components location

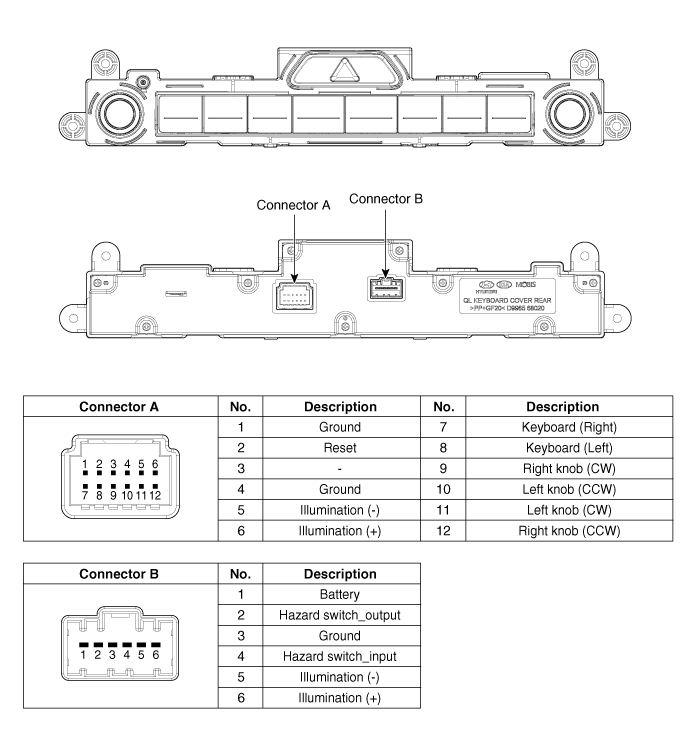

Components

Description and operation
Description Limitations Of The Navigation system GPS Signal Reception State As the GPS satellite frequency is received/transmitted in straight lines, reception may not work ...

AVN Keyboard Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the center fascia lower panel. (Refer to Body - "Center ...
