Kia Sportage: Heating and air conditioning / Air conditioning

Kia Sportage QL (2015-2025) Owners Manual / Features of your vehicle / Manual climate control system / Heating and air conditioning / Air conditioning

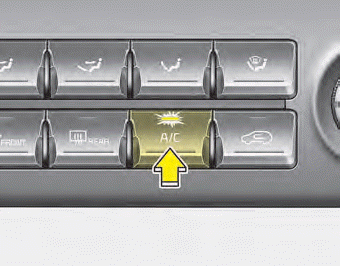

Press the A/C button to turn the air conditioning system on (indicator light will illuminate). Press the button again to turn the air conditioning system off.

Fan speed control
The ignition switch must be in the ON position for fan operation. The fan speed control knob allows you to control the fan speed of the air flowing from the ventilation system. To change the fan ...

System operation
Ventilation 1.Set the mode to the position. 2.Set the air intake control to the outside (fresh) air position. 3.Set the temperature control to the desired position. 4.Set the fan speed control to ...
