Kia Sportage: Curtain air bag / Air bag collision sensors
.png)

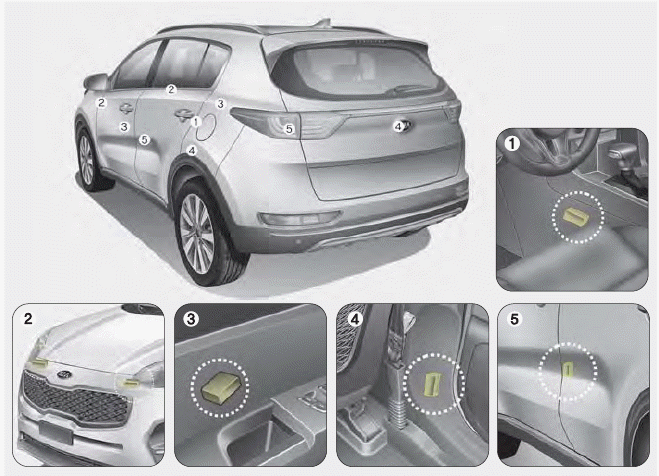

(1) SRS control module/ Rollover sensor
(2) Front impact sensor
(3) Side impact sensor (Front Door)
(4) Side impact sensor (C-pillar)
(5) Side impact sensor (B-pillar)
WARNING - Air bag sensors
- Do not hit or allow any objects to impact the locations where air bags
or sensors are installed.
This may cause unexpected air bag deployment, which could result in serious
personal injury or death.
- If the installation location or angle of the sensors is altered in
any way, the air bags may deploy when they should not or they may not deploy
when they should.
Therefore, do not try to perform maintenance on or around the air bag sensors.
Have the vehicle checked and repaired by an authorized Kia dealer.
Problems may arise if the sensor installation angles are changed due to the deformation
of the front bumper, front end module, body or front doors where side collision
sensors are installed. Have the vehicle checked and repaired by an authorized Kia
dealer.
Installing bumper guards (or side step or running board) or replacing a bumper
(or front door module) with non-genuine parts may adversely affect your vehicle’s
collision and air bag deployment performance.
❈ The actual air bags in the vehicle may differ from the illustration.
Curtain air bags are located along both sides of the roof rails above the front
and rear doors.
They are designed to he ...
Front air bags
Front air bags are designed to inflate in a frontal collision depending on the
impact of the front collision.
Side and/or curtain air bags
Side and/or curtain air bags are de ...
