Kia Sportage: 4WD Control System / 4WD ECU Components and components location

Kia Sportage QL (2015-2021) Service Manual / 4 Wheel Drive (4WD) System / 4WD Control System / 4WD ECU Components and components location

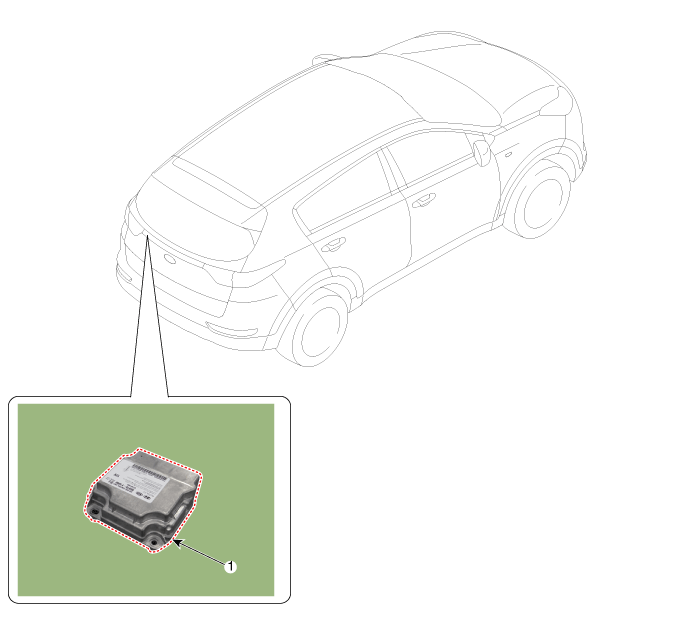

Components Location

1. 4WD ECU

Repair procedures
Adjustment Description The friction material inside the coupling will degrade over time. Therefore, corresponding compensation values must be referenced and entered aft ...

4WD ECU Description and operation
Description 4WD ECU processes signals from various sensors and determines the current road and driving conditions. The ECU then utilizes this information to implement precision ...
