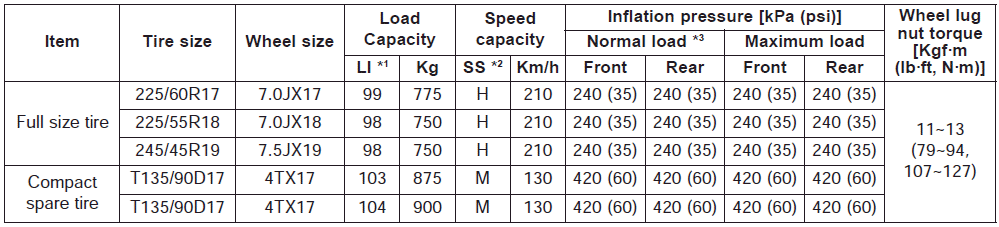

Kia Sportage: Specifications & Consumer information / Tires and wheels
.png)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make them work irregularly.
✽ NOTICE
- It is permissible to add 3psi to the standard tire pressure specification
if colder temperatures are expected soon. Tires typically loose 1psi for every
12°F temperature drop. If extreme temperature variations are expected, recheck
your tire pressure as necessary to keep them properly inflated.
- We recommend that when replacing tires, use the same originally supplied
with the vehicles. If not, that affects driving performance.
- When driving in high altitude grades, it is natural for the atmospheric
pressure to decrease. Therefore, please check the tire pressure and add more
air when necessary. Additionally required tire air pressure per km above sea
level: 1.5psi/km
Min(V7) : Max Behind Second Seat
Max(V6) : Max Behind Front Seat ...
