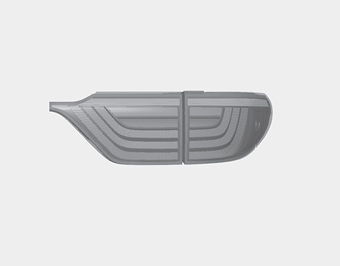

Kia Sportage: Light bulbs / Stop and tail lamp (LED type) bulb replacement
.png)
If the stop and tail lamp (LED) does not operate, we recommend that you have
your vehicle checked by an authorized Kia dealer.
1. Open the tailgate.
2. Remove the service cover.
3. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with the slots on the assemb ...
If the Back-up lamp and Rear turn signal lamp does not operate, we recommend
that you have your vehicle checked by an authorized Kia dealer. ...
