Kia Sportage QL (2015-2025) Service Manual / Engine Electrical System / Starting System / Starter Relay Repair procedures

Inspection
1.
Turn ignition switch OFF and disconnect the battery negative (-) terminal.
2.
Remove the engine room fuel & relay box cover.
3.

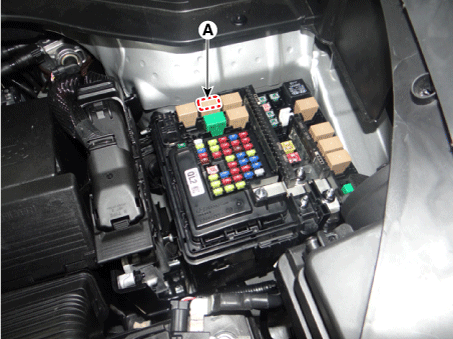

Remove the starter relay (A).

4.

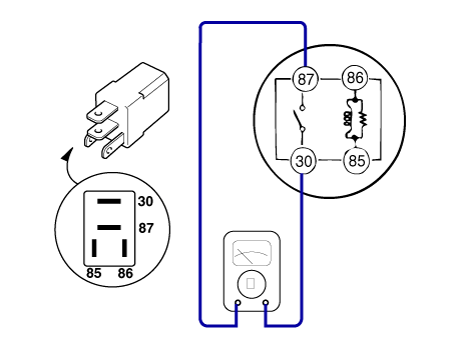

Check for continuity between the terminals (30 and 87) using an ohmmeter.
Terminal
Resistance
Measure
30 - 87
1MΩ or higher
If there is continuity between the terminals, replace the relay.

5.

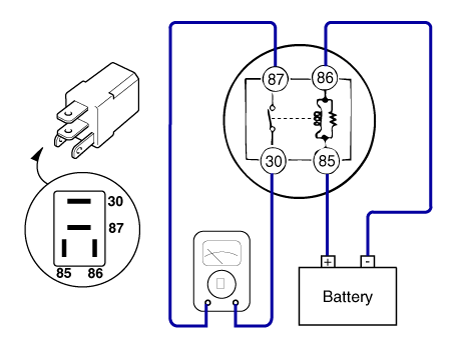

Apply 12 V to the terminal 85 and ground to the terminal 86 and then check for continuity between the terminals (30 and 87).
Terminal
Resistance
Measure
30 - 87
1Ω or less
If there is no continuity between the terminals, replace the relay.

6.
Install the starter relay.
7.
Install the fuse box cover.
