Kia Sportage: Warning Messages / Shift to P position (for smart key system)

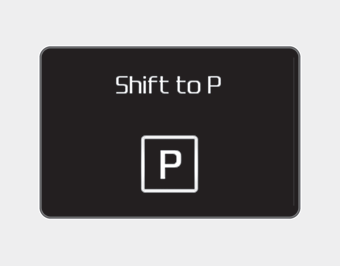

This warning message illuminates if you try to turn off the engine without the shift lever in P (Park) position.
At this time, the Engine Start/Stop Button turns to the ACC position (If you press the Engine Start/Stop Button once more, it will turn to the ON position).

...
